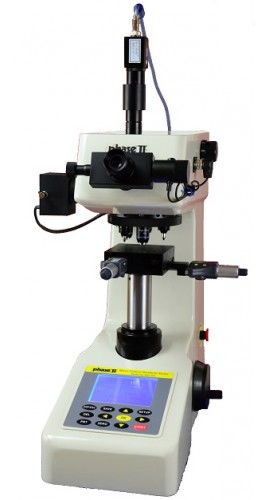

Phase II 900-392C Micro Vickers Hardness Tester with Auto Turret and Manual Software

Model: 900-392C

Phase II 900-392C Micro Vickers Hardness Tester with Auto Turret and Manual Software

Model: 900-392C

The Phase II 900-392 is mid level micro-vickers hardness tester, covering the load range from 10g to 1kg, with digital technology. Conforming to ASTM E-384/92 vickers hardness testers standards, the 900-392 digital vickers hardness tester will offer unmatched repeatability.

This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.

Sale Price	$25643.00 USD
Regular Price	$28492.50 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Phase II 900-392C Offers

The 900-392 Micro Vickers Hardness Tester is engineered to produce a clearer indentation and hence a more precise measurement.

Features

Wide measurement field and a broad usage range
Equipped with a digital microscope
LCD screen display
Can be linked to a digital camera and a CCD video-camera
Can measure Knoop hardness after installing an optional knoop indentor

Applications

Automotive auctions
Heat treat facilities
Tool rooms and workshops
Inspection labs

Phase II 900-392C Specifications

Test Forces	(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300, 500, 1000) gf
Carriage Control	automatic (Load/Dwell/Unload)
Amplification of the Microscope	200x, 400x
Dwell Time of the Test Force	(5-60)s
Min. Graduation Value of the Testing Drum Wheel	0.01um
Testing Field	1HV—2967HV
Movement Field of the XY Table	25 x 25mm
Max. height of the specimen	100mm
Max. width of the specimen	95mm
Light source	cold light source
Power Supply	110V/220V,60/50Hz
Dimension	(425 x 245 x 490)mm
Weight	30Kg

What's included with the Phase II 900-392C

Micro Vickers Hardness Tester
XY-stage test table
Thin specimen test table
Fork-shaped test table
Fine wire test table
Adjustable screw
10xDigital Micro Lens
Micro Vickers hardness blocks (high, medium)
Vickers Indentor
