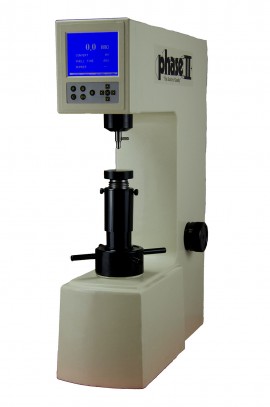

Phase II 900-364 Digital Rockwell Motorized Hardness Tester

Model: 900-364

Phase II 900-364 Digital Rockwell Motorized Hardness Tester-

More Phase II Products

Ask an Expert

Phase II 900-364 Digital Rockwell Motorized Hardness Tester

Model: 900-364

Fully automated load/unload procedure affords highly sensitive and accurate readings.

Fully automated load/unload procedure affords highly sensitive and accurate readings.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Phase II 900-410 Digital Rockwell Hardness Tester with Touchscreen-

Phase II 900-410 Digital Rockwell Hardness Tester with Touchscreen

Model: 900-410

This product is suitable for testing hardness of carbon steel, alloy steel, cast iron, non-ferrous metals and engineering plastics. This can be used directly to measure the most popular regular Rockwell hardness scales and it can quickly convert that hardness value into HB, HV, HLD, HK and many other scales. Loaded with many useful features such as ultra precise results, wide measuring range, scale and test force selectable, automatic main test force loading/unloading, high resolution digital display and USB data storage.

Learn More

Recommended Accessories

Phase II 900330-9415C Rockwell C Test Block, 20-30's-

Phase II 900330-9415C Rockwell C Test Block, 20-30's

900330-9415C

Phase II 900330-9414C Rockwell B Test Block, 85-100-

Phase II 900330-9414C Rockwell B Test Block, 85-100

900330-9414C

Phase II 900330-9414L Rockwell B Test Block, 60-80, USA Made-

Phase II 900330-9414L Rockwell B Test Block, 60-80, USA Made

900330-9414L

Phase II 900330-9414H Rockwell B Test Block, 85-100, USA Made-

Phase II 900330-9414H Rockwell B Test Block, 85-100, USA Made

900330-9414H

Phase II 900330-9413 Rockwell A Standard Test Block-

Phase II 900330-9413 Rockwell A Standard Test Block

900330-9413

Phase II 900331-STAND Cabinet/Stand for Hardness Testers-

Phase II 900331-STAND Cabinet/Stand for Hardness Testers

900331-STAND

Phase II 900-364 Offers

Features

  • Micro computer controlled with output to built-in mini printer.
  • Offers programmable scale conversions, dwell times, statistical capabilities and test counter
  • Capable of testing in most of the popular regular Rockwell scales
  • Automatic selectable conversions
  • Menu selectable system
  • Upper/Lower Limit Settings

Applications

  • Heat treat facilities
  • Laboratories
  • Workshops
  • Tool rooms
  • Inspection labs

Phase II 900-364 Specifications

Minor Load 10 Kgf
Major Load 60 Kgf, 100 Kgf, 150 KGF
Test Force Application Dead Weight
Test Force Control Motorized
Results Display Hi Def LCD Digital Readout
Resolution 0.1HR
Vertical Capacity 6.87"
Throat Depth 6.50"
Height 27.55"
Width 8.46"
Depth 20.60"
Weight 175 lbs

What's included with the Phase II 900-364

  • Hardness Tester
  • C-scale Diamond Indentor
  • 1/16" Ball Indentor
  • 2- HRC Test Blocks
  • 1-HRB Test Blocks
  • Built-in Mini Printer
  • Test Table 5.87" (150mm)
  • Flat Anvil 2.5" (63mm)
  • Std. Vee Anvil
  • Accessory Case

Click on a category to view a selection of compatible accessories with the Phase II 900-364 Digital Rockwell Motorized Hardness Tester.

Phase II 900330-9441 Carbide Ball Penetrator, 1/16" 900330-9441
Phase II standard Carbide Ball penetrator, 1/16".



Phase II 900330-9441C Carbide Ball Penetrator, 1/16", USA Certified 900330-9441C
Phase II USA certified Carbide Ball penetrator, 1/16".



Phase II 900330-18 Carbide Ball Penetrator, 1/18" 900330-18
Phase II standard Carbide Ball penetrator, 1/18".



Phase II 900330-12C Carbide Ball Penetrator, 1/2", USA Certified 900330-12C
Phase II USA certified Carbide Ball penetrator, 1/2".



Phase II 900330-12 Carbide Ball Penetrator, 1/2" 900330-12
Phase II standard Carbide Ball penetrator, 1/2".



Phase II 900330-14C Carbide Ball Penetrator, 1/14", USA Certified 900330-14C
Phase II USA certified Carbide Ball penetrator, 1/14".



Phase II 900330-14 Carbide Ball Penetrator, 1/14" 900330-14
Phase II standard Carbide Ball penetrator, 1/14".



Phase II 900330-18C Carbide Ball Penetrator, 1/18", USA Certified 900330-18C
Phase II USA certified Carbide Ball penetrator, 1/18".



Phase II PHT1100G-CERT ASTM Certified G Block for Brinell Scale PHT1100G-CERT
Round hardness tester block for "G" impact device with range of 590 - 670.



Phase II PHT1100G-01 Leeb Test Block for "G" Impact Device PHT1100G-01
HLG Test Block for Impact Style G Testers only.



Phase II PHT130003-CERT Leeb "D" Hardness Tester Block (Low Scale HRC), PHT130003-CERT
Round Test Block for Leeb "D" (low scale HRC) with range of 490-570, .



Phase II PHT1300-03 Test Block for Leeb "D" (low scale HRC) PHT1300-03
Round Test Block for Leeb "D" (low scale HRC) with range of 490-570.



Phase II PHT130002-CERT Leeb "D" Block (Mid Scale HRC), PHT130002-CERT
Leeb "D" Block (Mid Scale HRC) with range of 590-670.



Phase II PHT1300-02 Test Block for Leeb "D" (Mid Scale HRC) PHT1300-02
Leeb "D" Hardness Tester Block (Mid Scale HRC) with range of 590-670.



Phase II PHT130001-CERT Test Block for Leeb "D", PHT130001-CERT
With range of 590 - 670, Leeb "D" Hardness Tester Block.



Phase II PHT1300-01 Test Block for Leeb "D" (High HRC scale) PHT1300-01
For use with all "D" Type Impact Devices. Calibrated Leed "D" Round Test Block can be used with all other probes from range 750-800.



Phase II 900330-9440C Combo C&N Diamond Penetrator, USA Certified 900330-9440C
Phase II Grade B Rockwell C and N scale diamond penetrator, USA made.



Phase II 900330-9414BL Rockwell B Brass Test Block, 50's 900330-9414BL
Square rockwell hardness brass test block with range of 50's. Made in USA.



Phase II 900330-9414BH Rockwell B Brass Test Block, 80's 900330-9414BH
Square rockwell hardness brass test block with range of 80's. Made in USA.



Phase II 900330-9418L Rockwell E Aluminum Test Block, 60's 900330-9418L
Square rockwell hardness aluminum test block with range of 60's. Made in USA.



Phase II 900330-9418H Rockwell E Aluminum Test Block, 90's 900330-9418H
Square rockwell hardness aluminum test block with range of 90's. Made in USA.



Phase II 900330-9414AH Rockwell B Aluminum Test Block, 80's 900330-9414AH
Square rockwell hardness aluminum test block with range of 80's. Made in USA.



Phase II 900330-9417E Rockwell C Test Block, 60-70, USA, 900330-9417E
Rockwell C square test block with range of 60-70s, Phase II . Made in USA.



Phase II 900330-9417D Rockwell C Test Block, 60-70, 900330-9417D
Rockwell C round test block with range of 60-70s, Phase II .



Phase II 900330-9410M Master Hardness Tester Block Calibration Kit, C Scale Indentor, 900330-9410M
3 Piece Test Block Set with certified diamond indentor.



Phase II 900330-9417C Rockwell C Test Block, 60-70 900330-9417C
Rockwell C round test block with range of 60-70s.



Phase II 900330-9416E Rockwell C Test Block, 35-55, USA, 900330-9416E
Rockwell C square test block with range of 35-55, Phase II . Made in USA.



Phase II 900330-9416D Rockwell C Test Block, 40's-50's, 900330-9416D
Rockwell C round test block with range of 40's-50's, Phase II .



Phase II 900330-9416C Rockwell C Test Block, 40's-50's 900330-9416C
Rockwell C round test block with range of 40's-50's.



Phase II 900330-9415E Rockwell C Test Block, 20-30's, USA, 900330-9415E
Rockwell C square test block with range of 20-30's, Phase II , Made in USA.



Phase II 900330-9415D Rockwell C Test Block, 20-30's, 900330-9415D
Rockwell C round test block with range of 20-30's, Phase II .



Phase II 900330-9415C Rockwell C Test Block, 20-30's 900330-9415C
Rockwell C round test block with range of 20-30's.



Phase II 900330-9414C Rockwell B Test Block, 85-100 900330-9414C
Rockwell B round test block with range of 85-100.



Phase II 900330-9414L Rockwell B Test Block, 60-80, USA Made 900330-9414L
Rockwell B square test block with range of 60-80, Made in USA.



Phase II 900330-9414H Rockwell B Test Block, 85-100, USA Made 900330-9414H
Rockwell B square test block with range of 85-100, Made in USA.



Phase II 900330-9413 Rockwell A Standard Test Block 900330-9413
Rockwell A round test block with range of 80-88.



Phase II 900331-9407 V-Anvil 19mm shank 900331-9407
Fits Models 900-331, 900-345, 900-375.



Phase II 900331-9405 Anvil 19mm Shank, Flat, 2in 900331-9405
Flat Anvil, 19mm shank. Fits 900-331, 900-345, 900-375.



Phase II 900331-STAND Cabinet/Stand for Hardness Testers 900331-STAND
The Phase II hardness tester stand is designed to fit all standard Rockwell hardness testers, Brinell hardness testers and Vickers hardness testers. A 3" diameter hole is machined to allow for spindle travel on Rockwell hardness testers.
