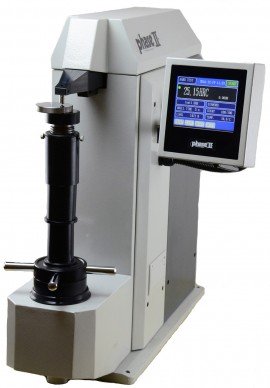

Phase-II 900-346 Digital Superficial Rockwell Hardness Tester

Model: 900-346

Phase-II 900-346 Digital Superficial Rockwell Hardness Tester

Model: 900-346

Features a fully automated load/unload procedure that allows for highly sensitive and accurate readings. Includes a micro computer controlled touch screen and a USB output to PC.

This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.

Sale Price	$10253.00 USD
Regular Price	$11392.50 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Phase II 900-346 Offers

The 900-387 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. It is capable of testing in all of the regular Rockwell hardness scales.

Features

Direct loading method with load-cell instead of dead weight system
High speed test cycle and extremely accurate loading control
Automatic conversions to HB, HV, Regular Rockwell Scales
Touch screen selectable system
Upper/Lower limit settings

Applications

Very thin sheet metal
Strip metal
Wire
Small rounds
Tin plate

Phase II 900-346 Specifications

Minor Load	3Kgf
Major Load	15Kgf, 30Kgf, 45Kgf
Test Force Application	Load Cell Closed Loop
Test Force Control	Motorized
Results Display	Hi Def LCD Digital Readout
Resolution	0.01HR
Vertical Capacity	7.80"
Throat Depth	5.90"
Test Resolution	0.01HR Rockwell unit
Operating Temperature	50 to 95ºF (10 to 35ºC)
Power Supply	Single phase, AC, 110-220 with manual change, 50～60Hz, 4A
Dimensions	700 x 250 x 600mm
Weight	220 lbs

What's included with the Phase II 900-346

900-346 Digital Superficial Rockwell Hardness Tester
N-scale Diamond Indenter
1/16" Ball Indenter
2 x HRN Test Blocks
3 x HRT Test Blocks
Test Table 5.87" (150mm)
Flat Anvil 2.5" (63mm)
Std. V-Anvil
Dust Cover
Accessory Case

Ask a question about Phase-II 900-346 Digital Superficial Rockwell Hardness Tester

Customer Reviews for the Phase II 900-346

Description ➕➖

Phase II 900-346 Offers

Features

Direct loading method with load-cell instead of dead weight system
High speed test cycle and extremely accurate loading control
Automatic conversions to HB, HV, Regular Rockwell Scales
Touch screen selectable system
Upper/Lower limit settings

Applications

Very thin sheet metal
Strip metal
Wire
Small rounds
Tin plate

Specifications ➕➖

Phase II 900-346 Specifications

Minor Load	3Kgf
Major Load	15Kgf, 30Kgf, 45Kgf
Test Force Application	Load Cell Closed Loop
Test Force Control	Motorized
Results Display	Hi Def LCD Digital Readout
Resolution	0.01HR
Vertical Capacity	7.80"
Throat Depth	5.90"
Test Resolution	0.01HR Rockwell unit
Operating Temperature	50 to 95ºF (10 to 35ºC)
Power Supply	Single phase, AC, 110-220 with manual change, 50～60Hz, 4A
Dimensions	700 x 250 x 600mm
Weight	220 lbs
