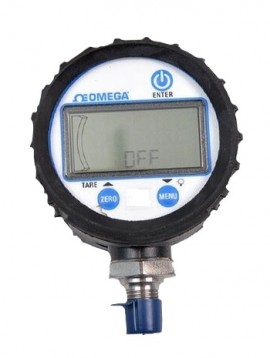

Designed for hydraulic system pressure measurement and process pressure monitoring, this digital pressure gauge provides 0 psi (0 bar) to 5000 psi (344.74 bar). It has display of 4 or 5-digit based upon resolution available.
Designed for hydraulic system pressure measurement and process pressure monitoring, this digital pressure gauge provides 0 psi (0 bar) to 5000 psi (344.74 bar). It has display of 4 or 5-digit based upon resolution available.
The DPG8001 Series digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit and is price comparable to that of mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales.
Features
Applications
| Series | DPG8001 Series |
| Type | digital pressure gauge |
| Configuration | 0 psi (0 bar) to 5000 psi (344.74 bar) |
| Accuracy | 0.25% FS terminal point (0.5% full scale terminal point for ranges 15 psi (1.03 bar), 30 V AC, 30 V15 and 30 V30) |
| Display | 4 or 5-digit based upon resolution available |
| Bar Graph | 20 segment vertical bar graph |
| Digit Height | 0.48" (12.2 mm) upper line; 0.24" (6.1 mm) lower line |
| Battery | Two "AA" alkaline included |
| Battery Life | 2000 hr. minimum |
| Media Temperature | -4 to 176°F (-20 to 80°C) |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Update Rate | 1 Hz |
| Cycle Life | 10 million |
| Enclosure Material (Case and Back) | Polycarbonate/ABS |
| Window | Polycarbonate |
| Enclosure Rating | NEMA 4X (IP67) |
| Protective Boot | Standard |
| Connection | 1/4 NPT male, lower position up to 10,000 psi (689 bar); >10,000 psi (689 bar): 9/16-18 UNF Female |
| Wetted Parts | 17-4 SS & 316L SS laser welded |
| Ranges | Vacuum through 25,000 psi (1723.69 bar) gauge, vacuum and compound gauge |
| Temperature Effects | 0.04%/°F (-20 to 180°F) zero and span |
| Proof Pressure | V AC to <300 psi (20.68 bar): 200% range; 300 to <5000 psi (344.74 bar): 150% range; 5000 to 25,000 psi (344.74 to 1723.69 bar): 120% range |
| Burst Pressure | V AC to <300 psi (20.68 bar): 800% range; 300 to <5000 psi (344.74 bar): 500% range; 5000 to 25,000 psi (344.74 to 1723.69 bar): 300% range |
| Vibration | MIL-STD-202G Method 201A |
| Shock | MIL-STD-202G Method 213 B |
| Display Indicators | 4-segment battery life indicator plus dedicated icons for gauge timer, backlight timer, tare, minimum and maximum |
| View Angle | 12 o'clock |
| Backlight | Standard, blue |
| Display Update | Adjustable for 1 sec, 500 msec or 250 msec |
| Battery Indicator | 4 levels |
| Keypad Functions | 3 Key with Multi Press Functionality (On/Off: Power symbol and enter; Zero: zero, tare, scroll up arrow; Menu: access, backlight, down arrow) |
| Auto-Off | Programmable for 1, 5 or 20 minutes or none for on/off |
| Engineering Units | psi, bar, inHg, cmHg, mmHg, kPa, mPa, kg/cm2, ftH2O, custom units, except on AMINCO compound gauge ranges |
| Agency Approvals | CE (heavy industrial), ASME B40.7, RoHs, UL 61010/cUL pending |
| Serial Number | Yes |
| Dimensions | 1.06" (27 mm) Hex (11/16" (17.5 mm)) |
