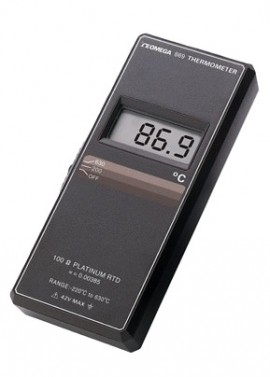

Omega 869C Handheld RTD Thermometer

Model: 869C

Omega 869C Handheld RTD Thermometer

Model: 869C

Designed for portable temperature measurement, this handheld RTD thermometer accepts an RTD input. It reads out on a digital display. Great for field and laboratory temperature measurement.

Your Price	$779.71 USD
Availability	2 to 3 Weeks
Quantity	Quantity

OMEGA 869C Offers

Features

Comes with NIST Traceability Certificate (No Points)
3- and 4-wire RTDs
High Accuracy
0.1° and 1° Resolution
Compact and Rugged
DIN 43760 Standard

Applications

Measuring process temperatures with 3- and 4-wire 100 ohm platinum RTD probes
Verifying calibration of industrial temperature sensors against a NIST-traceable reference
Surface temperature measurement in HVAC and equipment maintenance
High-accuracy temperature checks in laboratory and quality-control settings
Field troubleshooting of heating and cooling systems

OMEGA 869C Specifications

Sensor	3- or 4-wire 100 Ω Platinum RTD a=0.00385
Accuracy	Includes DIN 43760 conformity (no points), repeatability, temperature coefficient (18 to 28°C ambient), time stability (1 year) and errors with up to 50 Ω of resistance in each lead; excluded probe errors
Repeatability	Less than 0.2°F typical for one week at constant ambient temperature
Temperature coefficient	18 to 28°C (64 to 82°F); included in accuracy specification; less than 18°C (64°F) or greater than 28°C (82°F) less than ±(0.015°C)/°C
Maximum lead resistance	4-wire: 50 Ω max; 3-wire: 10 Ω max
Display	31/2 digit LCD, 0.5" (13 mm) height; polarity, decimal point, open sensor and overrange indication
Reading rate	1.5 per second
Battery life	500 hours typical, with 9V alkaline battery (included)
Battery indicator	Display reads "LO BAT" when less than 10% of life remains
Linearization	Ratiometric dual-slope A/D with continuous linearization
Mating connection	OMEGA series T instrumentation connectors (model TA4F and TA4FL), see omega.com
Environmental limits	Operating: 14 to 122°F (-10 to 50°C), less than 80% RH, up to 35°C; Storage: -31 to 140°F (-35 to 60°C), less than 90% RH, up to 35°C
Maximum common mode voltage	42 V peak
200°C range	-100.0 to +199.9°C; -199.0 to -100.1°C
200°C resolution	0.1°C
200°C accuracy	±0.3°C; ±1.5°C
1100°C range	-100 to 630°C; -220 to +101°C
1100°C resolution	1°C
1100°C accuracy	±1°C; ±2°C
Dimensions	6.3 x 2.7 x 1.2" (160 H x 69 W x 31 D mm)
Weight	7.5 oz (210 g)

What's included with the OMEGA 869C

RTD Thermometer (High Accuracy)
NIST Traceable Calibration Certificate (No Points)
Mating Input Connector (TA4F)
9 V Alkaline Battery
Operator's Manual
