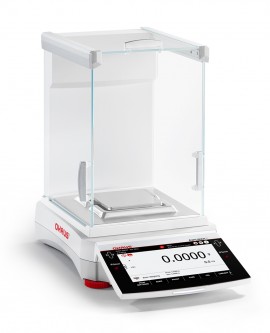

OHAUS EXR224 Explorer Analytical Balance, 220.0 g, 0.1 mg

Model: EXR224 | Order No: 31059211

OHAUS EXR224 Explorer Analytical Balance, 220.0 g, 0.1 mg-

Downloads: datasheet manual

More OHAUS Products

Ask an Expert

OHAUS EXR224 Explorer Analytical Balance, 220.0 g, 0.1 mg

Model: EXR224 | Order No: 31059211

Delivering outstanding weighing performance with an intuitive interface and an environmentally friendly design, this analytical balance establishes a groundbreaking standard for laboratory operations. In addition, it features a capacity of 220.0 g with 0.1 mg readability to ensure accuracy and reliability.

Delivering outstanding weighing performance with an intuitive interface and an environmentally friendly design, this analytical balance establishes a groundbreaking standard for laboratory operations. In addition, it features a capacity of 220.0 g with 0.1 mg readability to ensure accuracy and reliability.

Sale Price $5401.24 USD
Regular Price $6760.00 USD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

Ohaus 30130302 ION-100A Static Ionizer for balances, AM, 1 s/10 cm to 5 s/20 cm decay time-

Ohaus 30130302 ION-100A Static Ionizer for balances, AM, 1 s/10 cm to 5 s/20 cm decay time

30130302

Ohaus 80253384 Solids Density Determination Kit for select balances-

Ohaus 80253384 Solids Density Determination Kit for select balances

80253384

OHAUS 30304101 RS232-USB Interface Kit-

OHAUS 30304101 RS232-USB Interface Kit

30304101

OHAUS 80500525 Cable, RS232, IBM 9P, AV DV MB Ranger-

OHAUS 80500525 Cable, RS232, IBM 9P, AV DV MB Ranger

80500525

OHAUS 30064203 SF40A Impact Printer-

OHAUS 30064203 SF40A Impact Printer

30064203

OHAUS 80850043 Anti-Theft Device, MB AX EX Scout-HD-

OHAUS 80850043 Anti-Theft Device, MB AX EX Scout-HD

80850043

OHAUS EXR224 Offers

The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.

Features

  • Time synchronization NTP
  • Support for HID (Human Interface Device) connection to a computer without the need for drivers
  • 4 level user management and an internal system log capacity of 100,000 entries
  • 1000 application sample libraries
  • Display: High-resolution 7" TFT touchscreen with 16.7 million colors and durable glass overlay
  • Operation: Universal AC input (100 to 240 V AC, 0.5 A, 50-60 Hz) with 12 V DC 1.5 A output via power adapter
  • Communication: Versatile connectivity with dual USB Host ports, USB Type-C device interface, Ethernet (RJ45), RS232, and optional Wi-Fi or Bluetooth via dongle
  • Construction: Metal housing construction featuring an SST 316 weighing pan, anti-static glass draftshield, two touchless sensors, and terminal status lights

Applications

  • Basic weighing
  • Parts counting
  • Check counting
  • Percent weighing
  • Check weighing
  • Dynamic weighing
  • Totalization
  • Formulation
  • Differential
  • Density determination
  • Peak hold

OHAUS EXR224 Specifications

Maximum Capacity 220 g
Readability 0.1 mg
Pan Size 3.5 x 3.5" (90 x 90 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Battery Life N/A
Legal for Trade N/A
Auxiliary Display Model Available as an accessory
Auto Door N/A
Tare Range To capacity by subtraction
Working Environment 50 to 86°F (10 to 30°C), 80% RH, non-condensing
Communication USB device
USB host x 2
RS232
Ethernet TCP/IP
WiFi/Bluetooth (Available as an accessory)
Power AC adapter (included)
Units of Measurement Singapore Tael
Ounce Troy
Pennyweight
Grain
Tical
Custom
Milligram
Momme
Newton
Baht
Taiwan Tael
Gram
Hong Kong Tael
Tola
Mesghal
Carat
Ounce
Minimum Weight 10 mg
Display 7" colour TFT touchscreen
Pan Construction Stainless steel
Built-in Ionizer No
Stabilization Time 2 s
Repeatability, typical 0.1 mg
Minimum Weight (USP, 0.1%, typical) 100 mg
Linearity ± 0.2 mg
Dimensions 15.5 x 14.6 x 9" (393 x 370 x 230 mm) (LxHxW)
Net Weight 16.3 lbs (7.4 kg)
Click here for complete specifications on the OHAUS EXR224

What's included with the OHAUS EXR224

  • Balance
  • In-Use Cover
brochure Ohaus EXR224 Brochure datasheet for the OHAUS EXR224 Explorer Analytical Balance, 220.0 g, 0.1 mg manual for the OHAUS EXR224 Explorer Analytical Balance, 220.0 g, 0.1 mg
