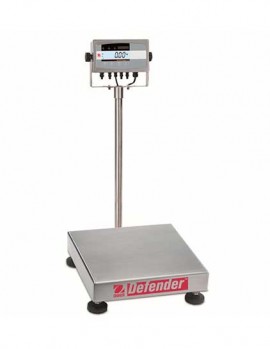

OHAUS D51XW250WX4 Defender 5000 Bench Scale, 500 lbs, 24 x 24" platform

Model: D51XW250WX4 | Order No: 80501218

OHAUS D51XW250WX4 Defender 5000 Bench Scale, 500 lbs, 24 x 24" platform-

Downloads: datasheet manual

More OHAUS Products

Ask an Expert

OHAUS D51XW250WX4 Defender 5000 Bench Scale, 500 lbs, 24 x 24" platform

Model: D51XW250WX4 | Order No: 80501218

Ideal for production, packaging and general commercial and industrial weighing applications where full washdown protection is required, this scale offers a multifunctional indicator with multiple weighing units and software modes. Features a capacity of 500 lbs, and a readability of 0.05 lb.

Ideal for production, packaging and general commercial and industrial weighing applications where full washdown protection is required, this scale offers a multifunctional indicator with multiple weighing units and software modes. Features a capacity of 500 lbs, and a readability of 0.05 lb.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

OHAUS D52XW250WQV8 Multifunctional Standard Washdown Bench Scale with stainless steel indicator, 500 lbs. capacity-

OHAUS D52XW250WQV8 Multifunctional Standard Washdown Bench Scale with stainless steel indicator, 500 lbs. capacity

Model: D52XW250WQV8 | Order No: 30461687

Designed for simpler user experiences, the multifunctional washdown bench-scale caters to a variety of applications, including production, packaging, inventory, and shipping. It features a 500 lbs. capacity, a durable stainless steel platform as well as an IP67 loadcell and an IP68 indicator.

Learn More

OHAUS D51XW250WX4 Offers

Features

  • All stainless-steel construction with IP66/NEMA4X protection for indicator, with load cells protected to IP67
  • 10,000 d default resolution
  • 1:5000 NTEP Certified/Measurement Canada Approved resolution
  • Quick display of results using large LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode with quick key press
  • Easy to operate with 4-key membrane keypad with raised tactile keys
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), metric tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, and Display Hold
  • Internal universal switching power supply with hardwired line cord
  • Includes RS232 interface with GMP/GLP data output including date and time
  • Integral faceplate supports for easy servicing
  • External tare input
  • Hardware configuration lockout switch

Applications

  • Production
  • Packaging
  • General commercial and industrial weighing
  • Industrial
  • Lab

OHAUS D51XW250WX4 Specifications

Capacity x Default Readability 500 lbs x 0.05 lb
8000 oz x 1 oz
500 lbs : 1 oz
250 kg x 0.02 kg
250,000 g x 20 g
Maximum Displayed Resolution 1:12,500
Capacity x
Certified/Approved Readability		 500 lbs x 0.10 lb
250 kg x 0.05 kg
Maximum Certified Resolution 3.513888888888889
Column 26.8" (680 mm) stainless steel
Construction Stainless steel indicator, removable weighing platform, column, base construction and load cell
Safe Overload Capacity 150% of maximum capacity
Protection NEMA 4x/IP66 for indicator, IP67 for load cell
Weighing Units lb, oz, lb:oz, kg, g, metric tonnes, custom unit
Modes Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold
Display 1" (25 mm) high 6-digit, 7-segment bright white backlit LCD
Keyboard 4-button membrane switch
Stabilization Time Within 2 seconds
Auto-zero Tracking Off, 0.5, 1 or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Span: 1 kg or 1 lb to 100% of capacity / 3-point linearity (0 to 50% – 100% fixed)
Power 100 to 240 VAC/50 to 60 Hz internal universal power supply
Interface RS232 and external tare input
Operating Temperature Range 14 to 104°F (-10 to 40°C)
Dimensions 24 x 5.4 x 37 x 24 x 28.7" (610 x 137 x 940 x 610 x 730 mm)
Weight 86.8 lbs (39.4 kg)
Click here for complete specifications on the OHAUS D51XW250WX4

What's included with the OHAUS D51XW250WX4

  • Bench Scale
  • AC Adapter
datasheet for the OHAUS D51XW250WX4 Defender 5000 Bench Scale, 500 lbs, 24 x 24" platform manual for the OHAUS D51XW250WX4 Defender 5000 Bench Scale, 500 lbs, 24 x 24" platform
