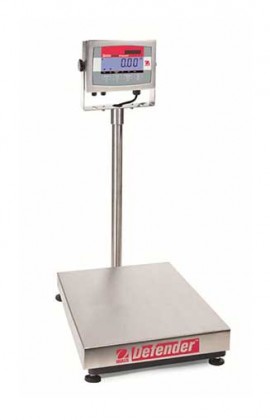

OHAUS D32XW150VL Defender 3000 Washdown Bench Scale, 330 lbs, 21.7 x 16.5" platform

Model: D32XW150VL | Order No: 83999820

Be the first to review this product

OHAUS D32XW150VL Defender 3000 Washdown Bench Scale, 330 lbs, 21.7 x 16.5&quot; platform-

Downloads: datasheet manual

More OHAUS Products

Ask an Expert

OHAUS D32XW150VL Defender 3000 Washdown Bench Scale, 330 lbs, 21.7 x 16.5" platform

Model: D32XW150VL | Order No: 83999820

Be the first to review this product

Features a 330 lbs capacity and a platform size of 21.7 x 16.5", this stainless steel bench scale is ideal for general weighing and simple counting applications when working in a damp environment. The scale offers 125% overload protection, easy-to-read display, and flexible mounting capabilities.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Industrial Scales category for similar products.

Or let's do a search and help you find what you need:

OHAUS D32XW150VL Offers

Features

Default resolution 1:7500; NTEP certified and Measurement Canada approved to 3000e
304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell
Indicator features a stainless steel housing with NEMA 4X / IP65 protection
Adjustable non-slip rubber levelling feet with externally visible level indicator
Multiple weighing units: lb, oz, kg, g
Parts counting mode with selectable sample sizes, last sample size and average piece weight data
1"/25mm high LCD weight display with high-contrast backlight
Built-in RS232 for printing and data connection
Internal universal switching power supply and 58-hour internal rechargeable battery included
Stainless steel indicator
Built-in RS232C with manual/continuous/interval printing
Hardware configuration lockout switch
Software included for parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking, power saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts

Applications

Production
Packaging
Warehouse
Inventory
Shipping and receiving areas

OHAUS D32XW150VL Specifications

Capacity x Readability (d)	330 lbs x 0.05 lb 5280 oz x 1 oz 150 kg x 0.02 kg 150,000 g x 20 g
Capacity x Readability (d) (Cal unit lb)	300 lb x 0.05 lb 4,800 oz x 1 oz 300 lb x 1 oz (lb:oz) 136 kg x 0.02 kg 136,000 g x 20 g
Displayed Resolution	5.25
Capacity x Readability Approved (e) (Cal unit lb)	300 lbs x 0.1 lb 4800 oz x 2 oz
Displayed Resolution	2.125
Displayed/Approved Resolution	1:6000d/1:3000e depending on capacity/readability
Column	27.6" (700 mm) fixed height, stainless steel
Safe Overload Capacity	125% of rated capacity
Functions	Weighing, Parts Counting
Weight Display	6-digit, 7-segment backlit LCD, 1" (25 mm) high digits
Keyboard	4 function mechanical keys, raised, tactile
Stabilization Time	Within 2 seconds
Auto-Zero Tracking	Off, 0.5, 1 or 3 divisions
Key Zeroing Range	2% or 100% of capacity
Span Calibration	5 lbs/kg to 100% of capacity, user selectable
Power	100 to 240 VAC/50 to 60 Hz internal switching power supply with internal rechargeable sealed lead-acid battery (58-hour typical operation with full charge)
Interface	Bi-directional RS232C
Operating Temperature Range	14 to 104°F (-10 to 40°C), Maximum relative humidity 80% for temperatures up to 88°F (31°C), decreasing linearly to 50% relative humidity at 104°F (40°C), non condensing
Platform	16.5 x 21.6 x 5.4" (420 x 550 x 136 mm)
Dimensions	Front view: 8.2 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6" (210 x 166 x 420 x 145 x 80 x 371 mm) Side view: 36.2 x 26.3 x 21.7 x 19.7 x 2" (920 x 668 x 550 x 500 x 52 mm)
Weight	60 lbs (27 kg)

Click here for complete specifications on the OHAUS D32XW150VL

What's included with the OHAUS D32XW150VL

Bench Scale
AC Adapter
Rechargeable Battery
