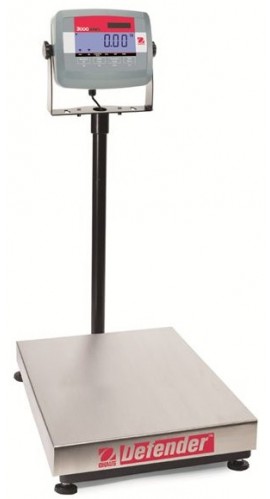

OHAUS D31P300BX Defender 3000 Bench Scale, 660 lbs, 25.6 x 19.7" platform

Model: D31P300BX | Order No: 83998116

Be the first to review this product

OHAUS D31P300BX Defender 3000 Bench Scale, 660 lbs, 25.6 x 19.7&quot; platform-

Downloads: datasheet manual

More OHAUS Products

Ask an Expert

OHAUS D31P300BX Defender 3000 Bench Scale, 660 lbs, 25.6 x 19.7" platform

Model: D31P300BX | Order No: 83998116

Be the first to review this product

Features a 660 lbs capacity and a platform size of 25.6 x 19.7", this bench scale is perfect for general weighing on dry applications. The scale offers 125% overload protection, 100-hour battery life, easy-to-read display, and flexible mounting capabilities.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Industrial Scales category for similar products.

Or let's do a search and help you find what you need:

OHAUS D31P300BX Offers

Features

Default resolution 1:6000; NTEP certified and Measurement Canada approved to 3000e
304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell
Indicator features a high-impact durable ABS plastic housing with reversible face for either wall, column or table-top mounting
Adjustable non-slip rubber levelling feet with externally visible level indicator
Multiple weighing units: lb, oz, lb:oz, kg, g
Parts counting mode with selectable sample sizes, last sample size and Average Piece Weight data
1"/25 mm high LCD weight display with high-contrast backlight
Built-in RS232 for printing and data connection
AC adapter and internal rechargeable lead acid battery
Indicator housing with internal rib reinforcements
Reversible front/rear cover
Built-in RS232C with manual/continuous/interval printing
Hardware configuration lockout switch
Internal lead-acid rechargeable battery and AC adapter
Software included for parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts

Applications

Production
Packaging
Warehouse
Inventory
Shipping and receiving areas

OHAUS D31P300BX Specifications

Capacity x Readability (d)	660 lbs x 0. 1lb 10,576 oz x 2 oz 660 lbs x 2 oz 300 kg x 0.05 kg 300,000 g x 50 g
Capacity x Readability (d) (Cal unit lb)	600 lbs x 0.1 lb 9,600 oz x 2 oz 600 lbs x 2 oz 272 kg x 0.05 kg 272,000 g x 50 g
Displayed Resolution	4.208333333333333
Capacity x Readability Approved (e) (Cal unit lb)	600 lbs x 0.2 lb 9600 oz x 5 oz
Approved Resolution	2.125
Column	27.6" (700 mm) fixed height, tubular painted steel
Safe Overload Capacity	125% of rated capacity
Functions	Weighing, Parts Counting
Weight Display	6-digit, 7-segment backlit LCD, 1" (25 mm) high digits
Keyboard	4 function mechanical keys, raised, tactile
Stabilization Time	Within 2 seconds
Auto-Zero Tracking	Off, 0.5, 1 or 3 divisions
Key Zeroing Range	2% or 100% of capacity
Span Calibration	5 lbs/kg to 100% of capacity, user selectable
Power	AC adapter with 100-hour internal rechargeable lead acid battery included
Interface	Bi-directional RS232C
Operating Temperature Range	14 to 104°F (-10 to 40°C), Maximum relative humidity 80% for temperatures up to 88°F (31°C), decreasing linearly to 50% relative humidity at 104°F (40°C), non condensing
Platform	19.7 x 25.6 x 5.8" (500 x 650 x 147 mm)
Dimensions	Front view: 8.2 x 6.5 x 19.7 x 5.6 x 3.5 x 17.3" (210 x 166 x 500 x 143 x 90 x 440 mm) Side view: 36.2 x 29.1 x 25.6 x 23.2 x 2" (920 x 740 x 650 x 590 x 52 mm)
Weight	71 lbs (32 kg)

Click here for complete specifications on the OHAUS D31P300BX

What's included with the OHAUS D31P300BX

Bench Scale
AC Adapter
Rechargeable Battery

datasheet for the OHAUS D31P300BX Defender 3000 Bench Scale, 660 lbs, 25.6 x 19.7" platform manual for the OHAUS D31P300BX Defender 3000 Bench Scale, 660 lbs, 25.6 x 19.7" platform

Ask a question about OHAUS D31P300BX Defender 3000 Bench Scale, 660 lbs, 25.6 x 19.7" platform

Customer Reviews for the OHAUS D31P300BX

Description ➕➖

OHAUS D31P300BX Offers

Features

Default resolution 1:6000; NTEP certified and Measurement Canada approved to 3000e
304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell
Indicator features a high-impact durable ABS plastic housing with reversible face for either wall, column or table-top mounting
Adjustable non-slip rubber levelling feet with externally visible level indicator
Multiple weighing units: lb, oz, lb:oz, kg, g
Parts counting mode with selectable sample sizes, last sample size and Average Piece Weight data
1"/25 mm high LCD weight display with high-contrast backlight
Built-in RS232 for printing and data connection
AC adapter and internal rechargeable lead acid battery
Indicator housing with internal rib reinforcements
Reversible front/rear cover
Built-in RS232C with manual/continuous/interval printing
Hardware configuration lockout switch
Internal lead-acid rechargeable battery and AC adapter
Software included for parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment and software menu lockouts

Applications

Production
Packaging
Warehouse
Inventory
Shipping and receiving areas

Specifications ➕➖

OHAUS D31P300BX Specifications

Capacity x Readability (d)	660 lbs x 0. 1lb 10,576 oz x 2 oz 660 lbs x 2 oz 300 kg x 0.05 kg 300,000 g x 50 g
Capacity x Readability (d) (Cal unit lb)	600 lbs x 0.1 lb 9,600 oz x 2 oz 600 lbs x 2 oz 272 kg x 0.05 kg 272,000 g x 50 g
Displayed Resolution	4.208333333333333
Capacity x Readability Approved (e) (Cal unit lb)	600 lbs x 0.2 lb 9600 oz x 5 oz
Approved Resolution	2.125
Column	27.6" (700 mm) fixed height, tubular painted steel
Safe Overload Capacity	125% of rated capacity
Functions	Weighing, Parts Counting
Weight Display	6-digit, 7-segment backlit LCD, 1" (25 mm) high digits
Keyboard	4 function mechanical keys, raised, tactile
Stabilization Time	Within 2 seconds
Auto-Zero Tracking	Off, 0.5, 1 or 3 divisions
Key Zeroing Range	2% or 100% of capacity
Span Calibration	5 lbs/kg to 100% of capacity, user selectable
Power	AC adapter with 100-hour internal rechargeable lead acid battery included
Interface	Bi-directional RS232C
Operating Temperature Range	14 to 104°F (-10 to 40°C), Maximum relative humidity 80% for temperatures up to 88°F (31°C), decreasing linearly to 50% relative humidity at 104°F (40°C), non condensing
Platform	19.7 x 25.6 x 5.8" (500 x 650 x 147 mm)
Dimensions	Front view: 8.2 x 6.5 x 19.7 x 5.6 x 3.5 x 17.3" (210 x 166 x 500 x 143 x 90 x 440 mm) Side view: 36.2 x 29.1 x 25.6 x 23.2 x 2" (920 x 740 x 650 x 590 x 52 mm)
Weight	71 lbs (32 kg)
