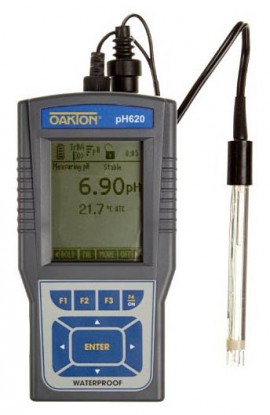

OAKTON PH 620 pH Meter and Probe

Model: PH 620 | Order No: WD-35418-20

OAKTON PH 620 pH Meter and Probe-

Downloads: datasheet manual

More OAKTON Products

Ask an Expert

OAKTON PH 620 pH Meter and Probe

Model: PH 620 | Order No: WD-35418-20

This handheld meter has research-grade ion-selective performance while remaining waterproof and portable.

This handheld meter has research-grade ion-selective performance while remaining waterproof and portable.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Multifunction Meters category for similar products.

Or let's do a search and help you find what you need:

Recommended Accessories

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction-

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction

WD-35816-71

OAKTON PH 620 Offers

Features

  • Durable waterproof and dustproof design with IP67 rating – Even with no probes attached
  • Push-button pH calibration at up to six points – Up to 15 buffer options with auto-buffer recognition of USA, NIST, DIN, and PWB standards
  • Large backlit graphic display – Multiline display with electrode status indicator, calibration data, and more
  • User-settable "calibration due" alarm – Out-of-date or unperformed calibrations are now things of the past!
  • Built-in real-time clock – Time-and-date stamping meets Good Laboratory Practice (GLP) standards
  • Store up to 500 data sets – Infrared IrDA wireless technology makes PC downloading convenient and easy
  • Set point alarms – Audible warning when readings are outside set points limit
  • Research-grade accuracy – Resolution to 0.001 pH and accuracy to ±0.002 pH
  • Electrode status indicator – Calibration data provides electrode diagnostic tool
  • Password protection – Security for calibration and setup menus

Applications

  • Laboratory
  • Water Measurements

OAKTON PH 620 Specifications

pH
Range –2.000 to 19.999 pH
Resolution 0.1/0.01/0.001 pH
Accuracy ±0.002 pH
Calibration Up to 6 buffer values (select from 4 sets): USA 1.68, 4.01, 7.01, 10.01, 12.45
NIST: 1.68, 4.01, 6.86, 9.18, 12.45
DIN: 1.09, 2.06, 4.65, 6.79, 9.23, 12.75, or custom buffers
Ion
Range 0.001 to 19,900 ppm, molar, or mg/L
Resolution 2 or 3 digits
Accuracy ±0.5% full-scale (monovalent); ±1% full-scale (divalent)
Calibration Up to 6 points
mV
Range ±2000
Resolution 0.1 mV
Accuracy ±0.2 mV
Calibration Offset up to ±150 mV
Click here for complete specifications on the OAKTON PH 620

What's included with the OAKTON PH 620

  • PH 620 pH Meter
  • "All-in-One" Probe
  • Batteries
datasheet for the OAKTON PH 620 pH Meter and Probe manual for the OAKTON PH 620 pH Meter and Probe

Click on a category to view a selection of compatible accessories with the OAKTON PH 620 pH Meter and Probe.

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction WD-35816-71
This single-junction, epoxy-body, gel-filled pH electrode is rugged at an economical price making it ideal for field, clean water, and general-purpose applications.



Ask a question about OAKTON PH 620 pH Meter and Probe

Customer Reviews for the OAKTON PH 620

OAKTON PH 620 Offers

Features

  • Durable waterproof and dustproof design with IP67 rating – Even with no probes attached
  • Push-button pH calibration at up to six points – Up to 15 buffer options with auto-buffer recognition of USA, NIST, DIN, and PWB standards
  • Large backlit graphic display – Multiline display with electrode status indicator, calibration data, and more
  • User-settable "calibration due" alarm – Out-of-date or unperformed calibrations are now things of the past!
  • Built-in real-time clock – Time-and-date stamping meets Good Laboratory Practice (GLP) standards
  • Store up to 500 data sets – Infrared IrDA wireless technology makes PC downloading convenient and easy
  • Set point alarms – Audible warning when readings are outside set points limit
  • Research-grade accuracy – Resolution to 0.001 pH and accuracy to ±0.002 pH
  • Electrode status indicator – Calibration data provides electrode diagnostic tool
  • Password protection – Security for calibration and setup menus

Applications

  • Laboratory
  • Water Measurements
Show More...

OAKTON PH 620 Specifications

pH
Range –2.000 to 19.999 pH
Resolution 0.1/0.01/0.001 pH
Accuracy ±0.002 pH
Calibration Up to 6 buffer values (select from 4 sets): USA 1.68, 4.01, 7.01, 10.01, 12.45
NIST: 1.68, 4.01, 6.86, 9.18, 12.45
DIN: 1.09, 2.06, 4.65, 6.79, 9.23, 12.75, or custom buffers
Ion
Range 0.001 to 19,900 ppm, molar, or mg/L
Resolution 2 or 3 digits
Accuracy ±0.5% full-scale (monovalent); ±1% full-scale (divalent)
Calibration Up to 6 points
mV
Range ±2000
Resolution 0.1 mV
Accuracy ±0.2 mV
Calibration Offset up to ±150 mV
Click here for complete specifications on the OAKTON PH 620

What's included with the OAKTON PH 620

  • PH 620 pH Meter
  • "All-in-One" Probe
  • Batteries
datasheet for the OAKTON PH 620 pH Meter and Probe manual for the OAKTON PH 620 pH Meter and Probe

Click on a category to view a selection of compatible accessories with the OAKTON PH 620 pH Meter and Probe.

OAKTON WD-35816-71 pH Electrode, All-in-One, Single Junction WD-35816-71
This single-junction, epoxy-body, gel-filled pH electrode is rugged at an economical price making it ideal for field, clean water, and general-purpose applications.
