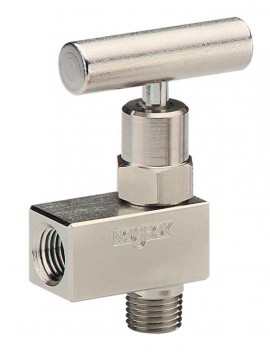

NOSHOK 102-MFAS Hard Seat Mini Valve, male to female angle, stainless steel

Model: 102-MFAS

Be the first to review this product

NOSHOK 102-MFAS Hard Seat Mini Valve, male to female angle, stainless steel-

Downloads: datasheet

More NOSHOK Products

Ask an Expert

NOSHOK 102-MFAS Hard Seat Mini Valve, male to female angle, stainless steel

Model: 102-MFAS

Be the first to review this product

Compact and durable needle valve with robust design for heavy-duty applications, this hard seat mini valve features a stainless steel male to female angle valve with 1/4" (0.635 cm) NPT connection. In addition, this valve has a pressure rating up to 10,000 psi at 200°F (93.3°C).

Sale Price	$83.34 USD
Regular Price	$138.90 USD
Availability	2 to 3 Weeks
Quantity	Quantity

NOSHOK 102-MFAS Offers

All stem threads are rolled which provides strength and ease of operation. In addition, this hard seat mini valve has a patented body-to-bonnet, metal-to-metal seal which significantly increases the pressure range of the valve.

Features

Compact size valve built for maximum durability and robust performance in the toughest applications
100% helium leak tested to 1 x 10^-4 mL/second for performance and reliability
Electropolished stainless steel
FKM O-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
All stem threads are rolled for strength and ease of operation
Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve

NOSHOK 102-MFAS Specifications

Pressure Rating	10,000 psi (at 200°F/93.3°C temperature)
Connection	Size: ¼" (0.635 cm) Type: National Pipe Thread (NPT)
Valve	Type: Male-female angle Material: Stainless steel
Materials	Electropolished 316 stainless steel
Stem Seal and Type	Polytetrafluoroethylene (PTFE) back-up ring below the threads All 316 stainless steel stems with fluorocarbon (FKM) o-ring
Cv Coefficient	0.42
Seat	Hard seat
Orifice Size	0.172" (0.44 cm)
Dimensions	Open: 3 x 0.75" (7.62 x 1.905 cm) Closed: 2.656 x 0.75" (6.75 x 1.905 cm)
Weight	0.5 lbs (0.23 kg) approximately

Click here for complete specifications on the NOSHOK 102-MFAS

What's included with the NOSHOK 102-MFAS

Hard Seat Mini Valve
3-Year Warranty

datasheet for the NOSHOK 102-MFAS Hard Seat Mini Valve, male to female angle, stainless steel

Ask a question about NOSHOK 102-MFAS Hard Seat Mini Valve, male to female angle, stainless steel

Customer Reviews for the NOSHOK 102-MFAS

Description ➕➖

NOSHOK 102-MFAS Offers

Features

Compact size valve built for maximum durability and robust performance in the toughest applications
100% helium leak tested to 1 x 10^-4 mL/second for performance and reliability
Electropolished stainless steel
FKM O-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
All stem threads are rolled for strength and ease of operation
Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve

Specifications ➕➖

NOSHOK 102-MFAS Specifications

Pressure Rating	10,000 psi (at 200°F/93.3°C temperature)
Connection	Size: ¼" (0.635 cm) Type: National Pipe Thread (NPT)
Valve	Type: Male-female angle Material: Stainless steel
Materials	Electropolished 316 stainless steel
Stem Seal and Type	Polytetrafluoroethylene (PTFE) back-up ring below the threads All 316 stainless steel stems with fluorocarbon (FKM) o-ring
Cv Coefficient	0.42
Seat	Hard seat
Orifice Size	0.172" (0.44 cm)
Dimensions	Open: 3 x 0.75" (7.62 x 1.905 cm) Closed: 2.656 x 0.75" (6.75 x 1.905 cm)
Weight	0.5 lbs (0.23 kg) approximately
