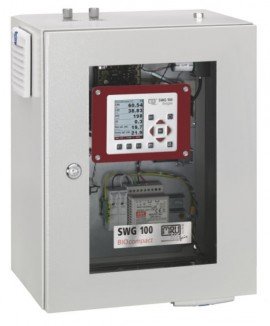

Ideal for monitoring landfill gas or biogas analysis for discontinuous measurements, this biogas analyzer works indoors/outdoors, measures dry, pressurized, or pressureless biogas, and analyzes one or two sites. In addition, it makes the biogas process more cost-effective and features an IP54 cabinet for use in harsh environments.
Ideal for monitoring landfill gas or biogas analysis for discontinuous measurements, this biogas analyzer works indoors/outdoors, measures dry, pressurized, or pressureless biogas, and analyzes one or two sites. In addition, it makes the biogas process more cost-effective and features an IP54 cabinet for use in harsh environments.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.
Get the data to show your organization cares about the environment with this stationary biogas measuring system for discontinuous measurements.
Features
Applications
| Measured Components | |
| Methane (CH4) | Measuring method: NDIR Measuring range: 0 to 100% Resolution: 0.01 Vol% Accuracy: ±0.3 Vol%/3% of reading* *Whichever is higher |
| Carbon Dioxide (CO2) | Measuring method: NDIR Measuring range: 0 to 100% Resolution: 0.01 Vol% Accuracy: ±0.3 Vol%/3% of reading* *Whichever is higher |
| Oxygen (O2) | Measuring method: Electro-chemical Measuring range: 0 to 25% Resolution: 0.01 Vol% Accuracy: 0.2% abs. |
| Hydrogen Sulfide (H2S) | Measuring method: Electro-chemical Measuring range: 0 to 2000/4000 ppm* Resolution: 1 ppm Accuracy: ±5 ppm/5% of reading** Low: Measuring method: Electro-chemical Measuring range: 0 to 50/250 ppm* Resolution: 1 ppm Accuracy: ±2 ppm/10% of reading** High: Measuring method: Electro-chemical Measuring range: 100 to 5000/10,000 ppm Resolution: 1 ppm Accuracy: ±50 ppm/5% of reading *Overload range of ECS is usable only for a short duration **Whichever is higher |
| Hydrogen (H2) | Measuring method: Electro-chemical Measuring range: 0 to 1000/2000 ppm* Resolution: 1 ppm Accuracy: ±10 ppm/10% of reading** *Overload range of ECS is usable only for a short duration **Whichever is higher |
| Calculated Values | |
| Nitrogen Background (N2) | Range: 0 to 79% Resolution: 0.1% |
| Calorific Values | Gross: Range: 0 to 40 MJ/m3/0 to 56 MJ/kg Resolution: 0.1% Net: Range: 0 to 36 MJ/m3/0 to 50 MJ/kg Resolution: 0.1% |
| General Specifications | |
| Human Machine Interface (HMI) | 3.5" (88.9 mm) TFT color display Dirt resistant keypad, password protected calibration 4 x analog output 4 to 20 mA, galvanically isolated maximum load 500R Two alarm relays, potential free contacts 24 V DC/5 A RS485 digital interface (Modbus RTU) RS485 to USB or Ethernet or ProfiBus converter (options) |
| System Safety Components | Continuous cabinet ventilation Stainless steel flow restrictor orifice and sample gas shut-down solenoid valve LEL (CH4) monitoring inside cabinet (option) |
| Sample Preparation | Stainless steel gas fittings with ⅛" ID threads Condensate catch pot and draining pump Teflon particulate filter Sampling pump 40 to 60 l/h Sample inlet pressure: -100 up to 200 mbar Sample venting: Atmosphere pressure |
| Ambient Temperature | 41 to 113°F (5 to 45°C) or 14 to 113°F (-10 to 45°C) with cabinet heater |
| Housing | Material: Steel cabinet with corrosion protective lacquer Protection: IP54 |
| Installation Site | Indoor or outdoor (rain and sun shade is mandatory user scope of supply) |
| Power Supply | Universal 90 to 240 V AC/47 to 63 Hz/60 W (360 W with heater) |
| Dimensions | 15.74 x 19.68 x 8.26" (400 x 500 x 210 mm) for wall or rack mounting |
| Weight | 55 lbs (25 kg) |
