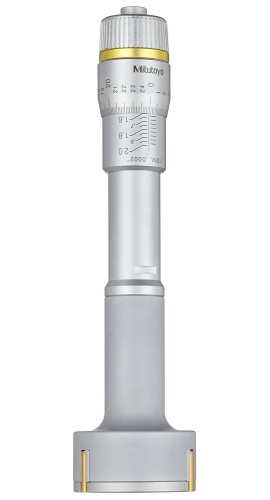

Mitutoyo HT-5”R Holtest Vernier Inside Micrometer, Three-Point, 4-5in, .00025in

Model: HT-5"R

Three-point contacts for self-centering measurement of the inside dimension (ID) of bores.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Holtest Micrometers category for similar products.

Or let's do a search and help you find what you need:

Mitutoyo HT-5"R Offers

These Holtests are versatile, self-centering three-point internal micrometers for the accurate and efficient direct-measurement of internal diameters. Three anvils, evenly spaced at 120° apart, contact the internal wall surfaces and find true alignment with the axis of the bore for accurate ID measurement.

Features

TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole
Measurement can be taken closer to the bottom of the blind bore
Can measure deep holes using an Extension rod (optional)
With Ratchet Stop for constant force
Setting Rings for zero point adjustment are optional

Applications

Mechanical Engineering
Mechanical Trandes
Machining

Mitutoyo HT-5"R Specifications

Range	4-5in
Accuracy	.00025in
Measurement System	Inch
Type	Three-point
Contact-point material	TiN coating (1700-2000HV)

Click here for complete specifications on the Mitutoyo HT-5"R

What's included with the Mitutoyo HT-5"R
