Delivers hardness testing that defies conventional thinking and enables a wide variety of measurements.
Delivers hardness testing that defies conventional thinking and enables a wide variety of measurements.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping. We will contact you with your shipping costs.

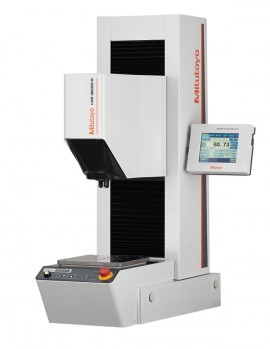

The Rockwell hardness testing machine has a real time test force control.
Features
| Specifications | |
| Contact Unit Contact Area: | 18 x 4mm |
| Minimum Inside Radius of Workpiece: | 25 mm |
| Minimum Inside Ø of Workpiece: | 400 mm |
| Minimum Outside Radius of Workpiece: | 20 mm |
| Max. Specimen Height (reduced by addiing accessories and X-axis): | 250 mm |
| Z-Axis Height (Max. specimen height): | 250 mm |
| Z-Axis Height with X-axis Added (Max. specimen height): | 165 mm |
| Throat Depth: | 220 mm |
| Max. Specimen Weight: | 100 kg |
| Max. Specimen Weight with X-Axis Mounted: | 50kg |
| Max. speed Z: | 10 mm/sec |
| External Dimensions (W x D x H): | 350 x 681 x 935 mm |
| External dimensions display unit (W x D x H): | 191 x 71 x 147 mm |
| Mass Main Unit: | 176 kg |
| Power Supply | AC100 V, 120 V, 220 V, 240 V Auto-selection |
| Operation Temperature: | 5 to 40°C |
| Humidity: | 55 to 65% (without dew condensation) |
