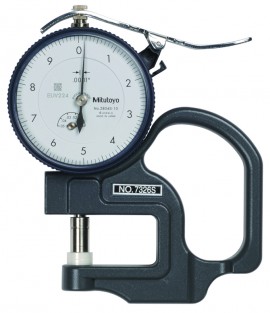

Mitutoyo 7326S Dial Thickness Gage, 0-0.05", Flat Ceramic Anvil

Model: 7326S

Mitutoyo 7326S Dial Thickness Gage, 0-0.05", Flat Ceramic Anvil

Model: 7326S

Flat Anvil, Fine Dial Reading Type, 0-0.05" Range, 0.0001" Graduation, ±0.0002" Accuracy.

Flat Anvil, Fine Dial Reading Type, 0-0.05" Range, 0.0001" Graduation, ±0.0002" Accuracy.

Sale Price $170.25 USD
Regular Price $227.00 USD
Availability 4 in Stock
Quantity

Add In-House Traceable Calibration to your 7326S

Add In-House Traceable Calibration to your 7326S


Mitutoyo 7326S Dial Thickness Gauge in Inches Offers

Features

  • Thickness gauge measures 0 to 0.05" with 0.0001" graduations and ± 0.0002" accuracy, for measuring the thickness of thin items such as paper
  • Dial indicator with white face with fine graduations, for precise and readable measurements in inches
  • Contact point and the flat anvil are ceramic for corrosion resistance
  • Grip handle, thumb trigger, and spring-loaded spindle for accurate measurements
  • Measuring force of 1.4N or less

Applications

Ideal for the following applications: Measuring thickness of small parts, metal, rubber, vinyl, foil and other sheet material.

Mitutoyo 7326S Specifications

Range 0 - 0.05 inch
Graduation 0.0001"
Max. measuring depth 1.2"
Accuracy ±0.0002"
Measuring force ≤ 1,4 N
Indicator No. 2804SB-10
Mass 205 g
Parallelism 0.0005"0.0002" : 7326S
Inch-Metric Inch
Functions Ceramic disc contact points
Click here for complete specifications on the Mitutoyo 7326S

What's included with the Mitutoyo 7326S

  • Mitutoyo 7326S Dial Thickness Gage, 0-0.05", Flat Ceramic Anvil
  • Customer Reviews for the Mitutoyo 7326S

    Ask a question about Mitutoyo 7326S Dial Thickness Gage, 0-0.05", Flat Ceramic Anvil

    Mitutoyo 7326S Dial Thickness Gauge in Inches Offers

    Features

    • Thickness gauge measures 0 to 0.05" with 0.0001" graduations and ± 0.0002" accuracy, for measuring the thickness of thin items such as paper
    • Dial indicator with white face with fine graduations, for precise and readable measurements in inches
    • Contact point and the flat anvil are ceramic for corrosion resistance
    • Grip handle, thumb trigger, and spring-loaded spindle for accurate measurements
    • Measuring force of 1.4N or less

    Applications

    Ideal for the following applications: Measuring thickness of small parts, metal, rubber, vinyl, foil and other sheet material.

    Mitutoyo 7326S Specifications

    Range 0 - 0.05 inch
    Graduation 0.0001"
    Max. measuring depth 1.2"
    Accuracy ±0.0002"
    Measuring force ≤ 1,4 N
    Indicator No. 2804SB-10
    Mass 205 g
    Parallelism 0.0005"0.0002" : 7326S
    Inch-Metric Inch
    Functions Ceramic disc contact points
    Click here for complete specifications on the Mitutoyo 7326S

    What's included with the Mitutoyo 7326S

  • Mitutoyo 7326S Dial Thickness Gage, 0-0.05", Flat Ceramic Anvil
  • Ask a question about Mitutoyo 7326S Dial Thickness Gage, 0-0.05", Flat Ceramic Anvil

    Customer Reviews for the Mitutoyo 7326S
