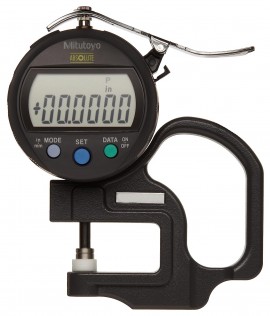

Mitutoyo 547-300A Flat Anvil ABSOLUTE Thickness Gauge, 0 to 0.4"/0 to 10 mm, inch/metric

Model: 547-300A

Mitutoyo 547-300A Flat Anvil ABSOLUTE Thickness Gauge, 0 to 0.4"/0 to 10 mm, inch/metric-

More Mitutoyo Products

Ask an Expert

Mitutoyo 547-300A Flat Anvil ABSOLUTE Thickness Gauge, 0 to 0.4"/0 to 10 mm, inch/metric

Model: 547-300A

Quickly and accurately measure the thickness of different materials or objects ranging from 0 to 0.4"/0 to 10 mm with this flat anvil thickness gauge. In addition, this thickness gauge features SPC output capabilities, an ergonomic grip handle, and an easy-to-read LCD.

Quickly and accurately measure the thickness of different materials or objects ranging from 0 to 0.4"/0 to 10 mm with this flat anvil thickness gauge. In addition, this thickness gauge features SPC output capabilities, an ergonomic grip handle, and an easy-to-read LCD.

Your Price $583.00 USD
Availability 7 to 8 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 547-300A Flat Anvil ABSOLUTE Thickness Gauge

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 547-300A Flat Anvil ABSOLUTE Thickness Gauge

Mitutoyo 547-300A Offers

Features

  • Measures the thickness of a wide range of materials and objects including paper, film, wire, sheet metal, and other similar materials with high accuracy
  • Measurements are shown on an easy-to-read LCD display
  • Utilizes the ID-C Digimatic indicator to provide error-free LCD readings
  • The grip handle, easy-to-reach lifting lever, and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy
  • The spindles and anvils are constructed with ceramic for better corrosion resistance
  • The signal can be output to an external device; waterproof data output connector protects against dust, water, and oil ingress
  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
  • Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
  • SPC output function allows for quick and easy data management in real-time
  • Unlimited response speed eliminates over-speed errors
  • Measuring force is 1.5 N or less

Applications

  • Aerospace
  • Automotive
  • Defense
  • Electronics
  • Energy
  • General manufacturing
  • Plastics and rubber

Mitutoyo 547-300A Specifications

Range 0 to 0.4"/0 to 10 mm
Accuracy ±0.001"
Resolution 0.0005"/0.01 mm
Measuring Force 1.5 N or less
Indicator Type Digimatic ID-C
SPC Output Yes
Units Inch/metric
Display LCD
Spindle/Anvil Material Ceramic
Battery Type: 1 x SR44
Life: Approximately 20,000 hours under normal use

What's included with the Mitutoyo 547-300A

  • Thickness Gauge
  • Fitted Plastic Carrying Case
