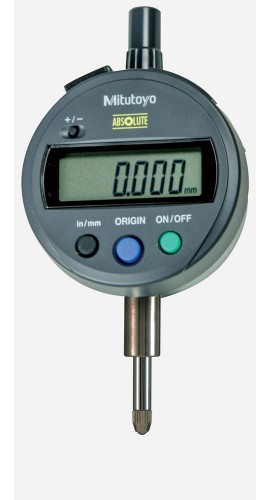

Mitutoyo 543-793B-12 Indicator, Digimatic, ID-S .5in, .0001in / 12.7mm, 0.001 mm, SPC

Downloads: datasheet

Absolute Digimatic Indicator ID-S Series 543 features simple design with .0001in / 12.7mmmm Resolution and .5in / 12.7mm Range.

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDI1) for only $95.00 USD

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIDI1) for only $95.00 USD

Features

After the initial zero-setting with the Origin button, the repeated absolute positioning is no longer necessary over entire batterylife
Unlimited response speed eliminates overspeed errors
Similar in size to standard Series 2 dial indicators
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
SPC data output

Applications

Range	.5in / 12.7mm
Resolution	.0001"/0.001mm
Accuracy	±.0001in
Measuring force	1.5N or less
Display	LCD
Length standard	ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed	Unlimited
Battery	SR44 (1 pc.), 938882
Battery life (normal use)	Approx. 20,000 hours
Type of back	Flat
Dust/Water protection level	IP42
Alarm	Low voltage, Counting value composition error, Over-flow error

datasheet for the Mitutoyo 543-793B-12 Indicator, Digimatic, ID-S .5in, .0001in / 12.7mm, 0.001 mm, SPC datasheet for the Mitutoyo 543-793B-12 Indicator, Digimatic, ID-S .5in, .0001in / 12.7mm, 0.001 mm, SPC

Features

After the initial zero-setting with the Origin button, the repeated absolute positioning is no longer necessary over entire batterylife
Unlimited response speed eliminates overspeed errors
Similar in size to standard Series 2 dial indicators
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
SPC data output

Applications

Range	.5in / 12.7mm
Resolution	.0001"/0.001mm
Accuracy	±.0001in
Measuring force	1.5N or less
Display	LCD
Length standard	ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed	Unlimited
Battery	SR44 (1 pc.), 938882
Battery life (normal use)	Approx. 20,000 hours
Type of back	Flat
Dust/Water protection level	IP42
Alarm	Low voltage, Counting value composition error, Over-flow error
