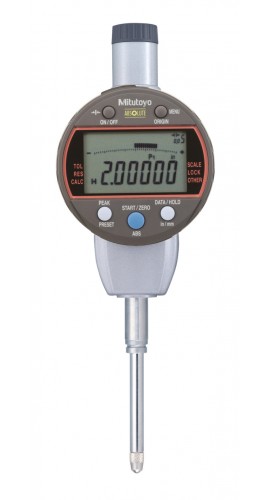

Mitutoyo 543-591B-10 Digital Indicator Calculation ID-C, 1”

The digital indicator calculation ID-C is used to calculate function for the measured value Ax+B+Cx-1 and comes with 1” and a flat back.

The digital indicator calculation ID-C has an easy indicator setup via a setup menu.

Features

The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
Coefficients A,B and C are freely definable. X = displacement of the plunger
Analogue bar graph in the display (14 different scales switchable)
GO/±NG tolerance judgement function
MAX/MIN/RANGE function to measure peak values
A fast measurement frequency mode(detection cycle 20 ms or 50times/s) is selectable to measure in the peak detection mode more reliably
A USB interface box can be used to set up the indicator from PC via dedicated software

Range:	1"/25.4 mm
Max. Permissible Error of Indication:	0.0001"/0.003 mm
Hysteresis:	0.0001"/0.002 mm
Repeatability:	0.0001"/0.002 mm
Mass:	190 g
Digital Step:	0.00005"/0.001 mm
Scale:	Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:	Unlimited
Stem ø:	8 mm
Power Supply:	1 battery CR-2032
