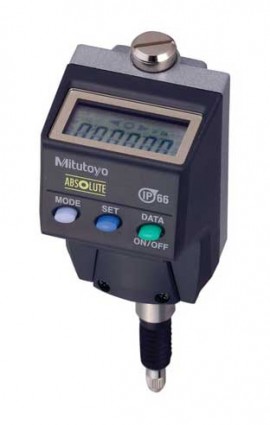

Mitutoyo 543-581 Digimatic Indicator with dust and water protection, 0.22" (5.6 mm)

Model: 543-581

Be the first to review this product

Mitutoyo 543-581 Digimatic Indicator with dust and water protection, 0.22" (5.6 mm)-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 543-581 Digimatic Indicator with dust and water protection, 0.22" (5.6 mm)

Model: 543-581

Be the first to review this product

Ideal for multi-point measurement, this digimatic indicator is highly resilient and robust with a measuring range of 0.22" (5.6 mm) and 0.0008 accuracy. Additionally, this instrument conforms to IP66 and features a back-plunger design and 1.4" (35 mm) slim body.

Your Price	$517.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Mitutoyo 543-581 Offers

Features

Proven absolute sensor
Rated to IP66 water and dust-proofing standard and oil resistance improved
Slim body design is advantageous for multi-point measurements
Improvement in workability with the LCD readout-rotation function
Back plunger design with the display viewed from above
Built-in tolerance judgment function
Switchable resolution
Waterproof data output connector
Built-in hold/preset function

Mitutoyo 543-581 Specifications

Range	0.22" (5.6 mm)
Resolution	0.0005" (0.01 mm)
Accuracy	0.0008" (0.02 mm)
Display	LCD
Measuring Force	2.0 N or less
Length Standard	Absolute electrostatic capacitance-type linear encoder
Maximum Response Speed	Unlimited
Battery	SR44, 938882
Battery Life	Approximately 7000 hours under normal use
Dust and Water Protection Level	IP66

Click here for complete specifications on the Mitutoyo 543-581

What's included with the Mitutoyo 543-581

Indicator
Inspection Certificate
Battery
Manual

datasheet for the Mitutoyo 543-581 Digimatic Indicator with dust and water protection, 0.22" (5.6 mm) datasheet for the Mitutoyo 543-581 Digimatic Indicator with dust and water protection, 0.22" (5.6 mm)

Ask a question about Mitutoyo 543-581 Digimatic Indicator with dust and water protection, 0.22" (5.6 mm)

Customer Reviews for the Mitutoyo 543-581

Description ➕➖

Mitutoyo 543-581 Offers

Features

Proven absolute sensor
Rated to IP66 water and dust-proofing standard and oil resistance improved
Slim body design is advantageous for multi-point measurements
Improvement in workability with the LCD readout-rotation function
Back plunger design with the display viewed from above
Built-in tolerance judgment function
Switchable resolution
Waterproof data output connector
Built-in hold/preset function

Specifications ➕➖

Mitutoyo 543-581 Specifications

Range	0.22" (5.6 mm)
Resolution	0.0005" (0.01 mm)
Accuracy	0.0008" (0.02 mm)
Display	LCD
Measuring Force	2.0 N or less
Length Standard	Absolute electrostatic capacitance-type linear encoder
Maximum Response Speed	Unlimited
Battery	SR44, 938882
Battery Life	Approximately 7000 hours under normal use
Dust and Water Protection Level	IP66
