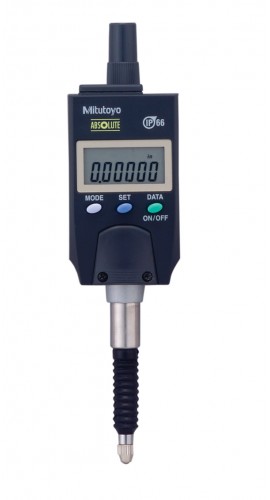

Mitutoyo 543-576 Digital Indicator ID-N, ANSI/AGD, IP66

The digital indicator ID-N is a slim back-plunger that is highly resilient and robust and comes with 0.00005”.

The digital indicator ID-N has a switchable display orientation that gives more mounting options.

Features

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle
It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid
You can perform GO/øNG judgement by setting the upper and lower tolerances

Range:	0.5"/12.7 mm
Digital Step:	0.00005"/0.001 mm
Max. Permissible Error of Indication:	0.00012"/0.003 mm
Mass:	130 g
Scale:	Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:	Unlimited
Stem ø:	9.52 mm
Contact Point:	Carbide ball, thread # 4-48UNF
Power Supply:	1 battery SR-44
Battery Life:	Approx. 7000 hours
Display:	LCD, character height: 6.2 mm
