Mitutoyo 543-562A Digimatic Indicator, high accuracy, 0 to 1.2" (0 to 30.5 mm)

Model: 543-562A

Be the first to review this product

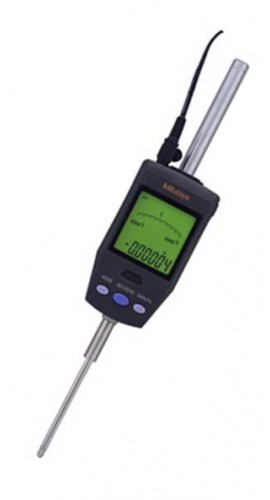

Mitutoyo 543-562A Digimatic Indicator, high accuracy, 0 to 1.2" (0 to 30.5 mm)-

Image is for reference only, refer to product info for complete details.

More Mitutoyo Products

Ask an Expert

Mitutoyo 543-562A Digimatic Indicator, high accuracy, 0 to 1.2" (0 to 30.5 mm)

Model: 543-562A

Be the first to review this product

Comes equipped with a large display and three easy-to-use buttons with measuring functions including origin-set/preset, zero-set, GO/±NG judgment, runout measurement, peak value hold, resolution switching, and inch/mm conversion. Also, this indicator has a measuring range of 0 to 1.2" (0 to 30.5 mm).

Your Price	$1140.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Mitutoyo 543-562A Offers

Features

High accuracy
Remote control functionality via a handheld controller (or an RS-232C interface)
Easy runout measurements with the well-established analog bar display
The maximum, minimum, or runout value can be displayed during measurement
If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance
With SPC data output
With RS-232C input/output

Mitutoyo 543-562A Specifications

Range	0 to 1.2" (0 to 30.5 mm)
Resolution	0.00002, 0.00005, 0.0001" (0.0005, 0.001 mm)
Accuracy	0.0015 mm
Display	LCD
Length Standard	Linear encoder
Maximum Response Speed	1000 mm/s
Measuring Force	2.0 N or less
Power Supply	6 V DC (via AC adaptor)

What's included with the Mitutoyo 543-562A

Indicator
Inspection Certificate
Lifting Lever
Adapter
Manual
