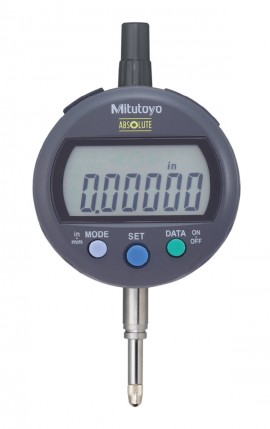

Mitutoyo 543-706-02 Digital Indicator ID-C, low force, inch/metric

The digital indicator ID-C has a function lock that protects the display against unauthorized and comes with 0.00005” and a lug back.

The digital indicator ID-C is a multifunction indicator that is reliable and easy to use.

Features

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle
GO/±NG judgement is performed by setting the upper and lower tolerances
You can make simple calculations by a user-definable factor using the formula Ax (‚x' is spindle displacement)
Large character height of 11 mm provides good readability
Display 330° rotatable

Range:	0.5"/12.7 mm
Digital Step:	0.00005"/0.001 mm
Max. Permissible Error of Indication:	0.0001"/0.003 mm
Hysteresis:	0.0001"/0.002 mm
Repeatability:	0.0001"/0.002 mm
Mass:	170 g
Scale:	Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:	Unlimited
Stem ø:	8 mm
Power Supply:	1 battery SR-44
Battery Life:	Approx. 7000h
