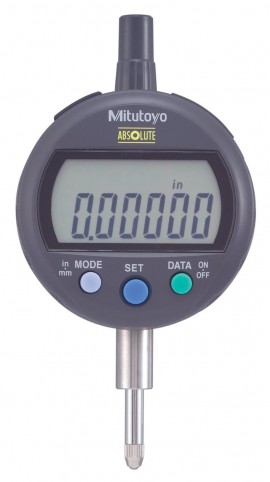

Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output

Model: 543-392B | UPC: 603908512325

Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output

Model: 543-392B | UPC: 603908512325

The Mitutoyo 543-392B IDC Absolute Digimatic Indicator has a Flat Back, 3/8" Stem diameter and 0.5"/12.7mm Measuring Range with a .00005"/0.001mm Resolution and a Measuring Force of 1.5N or Less.

The Mitutoyo 543-392B IDC Absolute Digimatic Indicator has a Flat Back, 3/8" Stem diameter and 0.5"/12.7mm Measuring Range with a .00005"/0.001mm Resolution and a Measuring Force of 1.5N or Less.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Mitutoyo 543-702B-02 Series 543 High-Performance ABS Digimatic ID-C Indicator with flat back, 0.5"/12.7 mm, inch/metric-

Mitutoyo 543-702B-02 Series 543 High-Performance ABS Digimatic ID-C Indicator with flat back, 0.5"/12.7 mm, inch/metric

Model: 543-702B-02

Precise and rugged, this digital indicator measures up to 0.5"/12.7 mm, features bidirectional serial communication to help increase work efficiency, and is digital step switchable. In addition, this indicator ensures measurement operations are smooth and precise.

Learn More

Mitutoyo 543-392B Offers

  • As compact as standard Series 2 dial indicators.
  • Large, easy-to-read LCD.
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle’s up/down movement can be toggled.
  • Internal calculations using the simple formula of [F(x)=Ax)] are available
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
  • With SPC data output

Mitutoyo 543-392B Specifications

Range 0 to 0.5" (0 to 12.7mm)
Accuracy .0001in
Contact Point Stem diameter 3/8",#4-48 UNF Thread
Resolution .00005" (0.001mm)
Measuring Force Less than 1.5N
Type ANSI/AGD ID-C Indicator
SPC Output Yes
Click here for complete specifications on the Mitutoyo 543-392B

What's included with the Mitutoyo 543-392B

  • Operation Manual
  • Inspection Certificate
  • Battery
datasheet for the Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output

Ask a question about Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output

Customer Reviews for the Mitutoyo 543-392B

Mitutoyo 543-392B Offers

  • As compact as standard Series 2 dial indicators.
  • Large, easy-to-read LCD.
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle’s up/down movement can be toggled.
  • Internal calculations using the simple formula of [F(x)=Ax)] are available
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
  • With SPC data output
Show More...

Mitutoyo 543-392B Specifications

Range 0 to 0.5" (0 to 12.7mm)
Accuracy .0001in
Contact Point Stem diameter 3/8",#4-48 UNF Thread
Resolution .00005" (0.001mm)
Measuring Force Less than 1.5N
Type ANSI/AGD ID-C Indicator
SPC Output Yes
Click here for complete specifications on the Mitutoyo 543-392B

What's included with the Mitutoyo 543-392B

  • Operation Manual
  • Inspection Certificate
  • Battery
datasheet for the Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output

Ask a question about Mitutoyo 543-392B Absolute Digital Indicator ID-C, 0-0.5" (0-12.7mm), SPC Output

Customer Reviews for the Mitutoyo 543-392B
