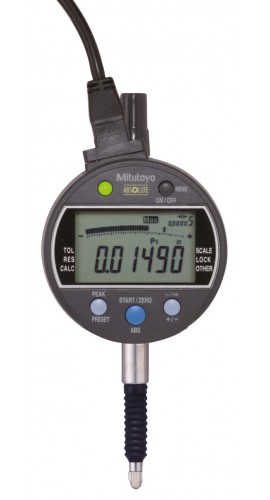

Mitutoyo 543-352B-10 Offers

Features

• Uses a green/red LED and Go/No-Go output to quickly show if measurements are within tolerance
• Measurements are shown on a large, easy-to-read LCD display
• A maximum/minimum value holding function performs Go/No-Go judgments against the peak values set
• The judgment is performed by calculating the measurement data obtained instead of through a mechanical or electrical contact which provides better reliability
• The judgment is indicated by green and red LEDs and "<, O, >" signs on the LCD allowing the signal to be outputted to an external device such as a sequencer through the NPN open-collector
• The high-speed detector measures 100 times per second
• Signal can be outputted to an external device
• Analog bar provides easy-to-read values when scanning for maximum, minimum, and TIR values
• Go/No-Go judgments are performed by setting the upper and lower tolerances
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real-time
• Functions include data output, remote control, origin set, zero-set, Go/No-Go judgment, analog bar, fast measuring frequency, peak detection, calculation, counting direction switching, power on/off, data output, and inch/mm conversion
• Alarm: Low voltage, counting value composition error, over-flow error, and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• IP54 for protection resists dust and contaminants from machine shop environments
• Manufactured to meet ANSI/AGD standards

Applications

• Aerospace
• Automotive
• Defense
• Electronics
• Energy
• General manufacturing
• Plastics and rubber
