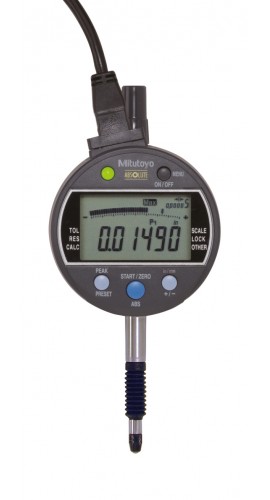

Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric

Model: 543-352-10

Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric

Model: 543-352-10

The digital indicator signal ID-C is an externally-powered digimatic indicator with an N-ch open drain –NG, OK, +NG output, and has 0.00005” with a lug back.

The digital indicator signal ID-C is an externally-powered digimatic indicator with an N-ch open drain –NG, OK, +NG output, and has 0.00005” with a lug back.

Your Price $737.00 USD
Availability 1 in Stock
Quantity

Mitutoyo 543-352-10 Offers

The digital indicator signal ID-C saves three different preset and tolerance settings.

Features

  • Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
  • Measures MAX/MIN/RANGE (run-out value)
  • Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
  • Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
  • Analogue bar graph in the display (12 different scales switchable)
  • GO/±NG tolerance judgement function

Mitutoyo 543-352-10 Specifications

Range: 0.5"/12.7 mm
Digital Step: 0.00005"/0.001 mm
Max. Permissible Error of Indication: 0.0001"/0.003 mm
Hysteresis: 0.0001"/0.002 mm
Repeatability: 0.0001"/0.002 mm
Mass: 285 g
Measuring Force: ≤2.5 N
Scale: Capacitance type, ABSOLUTE linear encoder
Max. Response Speed: Unlimited
Stem ø: 9.52 mm
Power Supply: 5 - 24 V DC/100 mA (max)

What's included with the Mitutoyo 543-352-10

  • Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric

Ask a question about Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric

Customer Reviews for the Mitutoyo 543-352-10

Mitutoyo 543-352-10 Offers

The digital indicator signal ID-C saves three different preset and tolerance settings.

Features

  • Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
  • Measures MAX/MIN/RANGE (run-out value)
  • Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
  • Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
  • Analogue bar graph in the display (12 different scales switchable)
  • GO/±NG tolerance judgement function

Mitutoyo 543-352-10 Specifications

Range: 0.5"/12.7 mm
Digital Step: 0.00005"/0.001 mm
Max. Permissible Error of Indication: 0.0001"/0.003 mm
Hysteresis: 0.0001"/0.002 mm
Repeatability: 0.0001"/0.002 mm
Mass: 285 g
Measuring Force: ≤2.5 N
Scale: Capacitance type, ABSOLUTE linear encoder
Max. Response Speed: Unlimited
Stem ø: 9.52 mm
Power Supply: 5 - 24 V DC/100 mA (max)

What's included with the Mitutoyo 543-352-10

  • Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric
