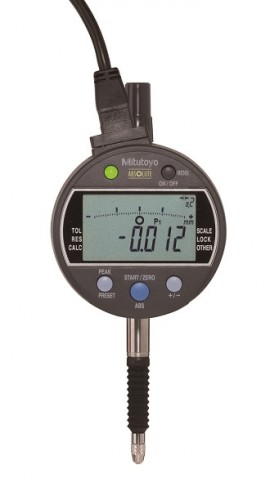

Mitutoyo 543-350-10 Digital Indicator Signal ID-C

Model: 543-350-10

Mitutoyo 543-350-10 Digital Indicator Signal ID-C

Model: 543-350-10

The digital indicator signal ID-C is an externally-powered digimatic indicator with an N-ch open drain –NG, OK, +NG output, and has 12.7 mm with a lug back.

Your Price	$644.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Mitutoyo 543-350-10 Offers

The digital indicator signal ID-C saves three different preset and tolerance settings.

Features

Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
Measures MAX/MIN/RANGE (run-out value)
Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
Analogue bar graph in the display (12 different scales switchable)
GO/±NG tolerance judgement function

Mitutoyo 543-350-10 Specifications

Range:	0.5"/12.7 mm
Max. Permissible Error of Indication:	0.0001"/0.003 mm
Hysteresis:	0.0001"/0.002 mm
Repeatability:	0.0001"/0.002 mm
Mass:	170 g
Digital Step:	0.00005"/0.001 mm
Scale:	Capacitance type, ABSOLUTE linear encoder
Max. Response Speed:	Unlimited
Stem ø:	8 mm
Power Supply:	1 battery CR-2032

What's included with the Mitutoyo 543-350-10

Mitutoyo 543-350-10 Digital Indicator Signal ID-C
