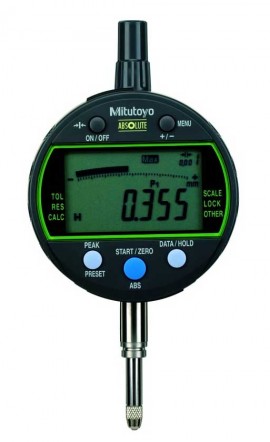

Mitutoyo 543-302B-10 Digimatic Indicator with peak hold function, 0.5" (12.7 mm)

Model: 543-302B-10

Mitutoyo 543-302B-10 Digimatic Indicator with peak hold function, 0.5" (12.7 mm)-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 543-302B-10 Digimatic Indicator with peak hold function, 0.5" (12.7 mm)

Model: 543-302B-10

Features peak hold function which prevents accidental changing of settings during operations. Additionally, this digimatic indicator comes equipped with a measuring range of 0.5" (12.7 mm) and accuracy of .0012".

Features peak hold function which prevents accidental changing of settings during operations. Additionally, this digimatic indicator comes equipped with a measuring range of 0.5" (12.7 mm) and accuracy of .0012".

Sale Price $486.72 USD
Regular Price $576.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 543-302B-10 Digimatic Indicator with peak hold function

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 543-302B-10 Digimatic Indicator with peak hold function

Mitutoyo 543-302B-10 Offers

Features

  • The max/min/range (run-out value) can be measured
  • A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (max/min/range) more reliably
  • Easy indicator setup via a setup menu
  • Analogue bar graph in the display (12 different scales switchable)
  • GO/NO-GO tolerance judgement function
  • This indicator enables the use of a calculation function for the measured value Ax
  • Coefficient A is freely definable and x = displacement of the plunger
  • A USB interface box can be used to set up the indicator from PC via dedicated software

Mitutoyo 543-302B-10 Specifications

Range 0.5" (12.7 mm)
Resolution 0.00005" (0.001 mm)
Accuracy 0.0012"
Display LCD
Contact Point ANSI/AGD type Stem dial 3⁄8" 4 to 48 UNF thread
Measuring Force Less than 1.5 N
Type ANSI/AGD
Battery CR2032
Battery Life Approximately 12 months under normal use
Click here for complete specifications on the Mitutoyo 543-302B-10

What's included with the Mitutoyo 543-302B-10

  • Indicator
  • Inspection Certificate
  • Battery
  • Manual
