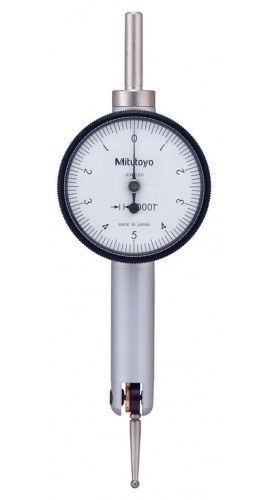

Mitutoyo 513-512-10E Series 513 Inch Pocket Dial Test Indicator, 0 to 0.02", 0.0005"

Model: 513-512-10E

Be the first to review this product

Mitutoyo 513-512-10E Series 513 Inch Pocket Dial Test Indicator, 0 to 0.02&quot;, 0.0005&quot;-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 513-512-10E Series 513 Inch Pocket Dial Test Indicator, 0 to 0.02", 0.0005"

Model: 513-512-10E

Be the first to review this product

Compact and accurate, this dial test indicator features a reversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areas. In addition, the one-piece movement provides high-impact resistance and better durability, and the jeweled bearing delivers high sensitivity and quick response.

Sale Price	$154.65 USD
Regular Price	$197.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Mitutoyo 513-512-10E Offers

Features

Reversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areas
A horizontal face parallel to the axis, and three dovetail mounts allow for horizontal or vertical mounting from the front, top, or back of the indicator
One-piece movement provides high-impact resistance and better durability
Jeweled bearings deliver high sensitivity and quick response
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point is adjustable within 220° of the axis
Contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating

Applications

General manufacturing
Aerospace
Automotive
Defense
Electronics
Energy
Plastics and rubber

Mitutoyo 513-512-10E Specifications

Range	0 to 0.02"
Accuracy	±0.0005"
Graduation	0.0005"
Measuring Force	0.3 N or less
Dial Reading	0-10-0
Technology	Mechanical
Units	Inch
Contact Point	Type: Carbide Length: 1.5" (37.4 mm)
Dimensions	3.3 x 0.9 x Ø1.3" (83.5 x 24 x Ø33 mm)
Weight	0.1 lbs (45 g)

Click here for complete specifications on the Mitutoyo 513-512-10E

What's included with the Mitutoyo 513-512-10E

Dial Test Indicator
Fitted Plastic Carrying Case

datasheet for the Mitutoyo 513-512-10E Series 513 Inch Pocket Dial Test Indicator, 0 to 0.02", 0.0005"

Ask a question about Mitutoyo 513-512-10E Series 513 Inch Pocket Dial Test Indicator, 0 to 0.02", 0.0005"

Customer Reviews for the Mitutoyo 513-512-10E

Description ➕➖

Mitutoyo 513-512-10E Offers

Features

Reversible measuring direction and adjustable contact point to measure surface variations in narrow or recessed areas
A horizontal face parallel to the axis, and three dovetail mounts allow for horizontal or vertical mounting from the front, top, or back of the indicator
One-piece movement provides high-impact resistance and better durability
Jeweled bearings deliver high sensitivity and quick response
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point is adjustable within 220° of the axis
Contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating

Applications

General manufacturing
Aerospace
Automotive
Defense
Electronics
Energy
Plastics and rubber

Specifications ➕➖

Mitutoyo 513-512-10E Specifications

Range	0 to 0.02"
Accuracy	±0.0005"
Graduation	0.0005"
Measuring Force	0.3 N or less
Dial Reading	0-10-0
Technology	Mechanical
Units	Inch
Contact Point	Type: Carbide Length: 1.5" (37.4 mm)
Dimensions	3.3 x 0.9 x Ø1.3" (83.5 x 24 x Ø33 mm)
Weight	0.1 lbs (45 g)
