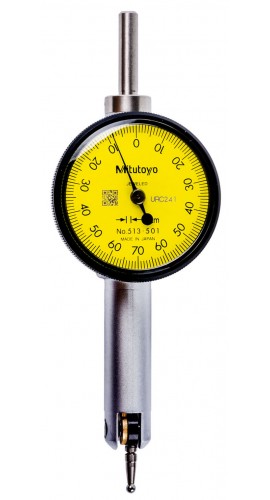

Mitutoyo 513-501-10T Series 513 Full Pocket Dial Test Indicator Set, 0.14 mm, 0.001 mm graduation

Model: 513-501-10T

Mitutoyo 513-501-10T Series 513 Full Pocket Dial Test Indicator Set, 0.14 mm, 0.001 mm graduation

Model: 513-501-10T

The pocket test dial offers reversible measuring direction and an adjustable design. The full set comes with 2 holding bars.

The pocket test dial offers reversible measuring direction and an adjustable design. The full set comes with 2 holding bars.

Sale Price $198.61 USD
Regular Price $253.00 USD
Availability 2 to 3 Weeks
Quantity

Mitutoyo 513-501-10T Offers



When you need accuracy, look to the Mitutoyo 513-501T Series 513 Full Pocket Dial Test Indicator Set. Complete with 2 holding bars, this adjustable dial indicator measures to the nearest 0.001 mm and has jeweled bearings for a highly sensitive design. Thanks to the O-ring seal, your view of the face remains crystal clear in wet or oily settings.

Features

  • Jeweled bearings create an accurate, highly sensitive design
  • O-ring seals out water and oil for a crisp, clear view of the face
  • Reversible measuring direction suits versatile applications
  • Bezel/dial face is fully adjustable
  • Contact point is adjustable within 220°

Mitutoyo 513-501-10T Specifications


Supported Measurement Unit(s)mm
Measurement Range0.14 mm
Accuracy3 μm
Dial Reading0 to 70 to 0
Graduation MeasurementsMillimeters
Measuring Force0.4 N
Product Length0.47" (12 mm)

What's included with the Mitutoyo 513-501-10T


  • Pocket Dial Test Indicator
  • 2 x Holding Bars

Ask a question about Mitutoyo 513-501-10T Series 513 Full Pocket Dial Test Indicator Set, 0.14 mm, 0.001 mm graduation

Customer Reviews for the Mitutoyo 513-501-10T

Mitutoyo 513-501-10T Offers



When you need accuracy, look to the Mitutoyo 513-501T Series 513 Full Pocket Dial Test Indicator Set. Complete with 2 holding bars, this adjustable dial indicator measures to the nearest 0.001 mm and has jeweled bearings for a highly sensitive design. Thanks to the O-ring seal, your view of the face remains crystal clear in wet or oily settings.

Features

  • Jeweled bearings create an accurate, highly sensitive design
  • O-ring seals out water and oil for a crisp, clear view of the face
  • Reversible measuring direction suits versatile applications
  • Bezel/dial face is fully adjustable
  • Contact point is adjustable within 220°

Mitutoyo 513-501-10T Specifications


Supported Measurement Unit(s)mm
Measurement Range0.14 mm
Accuracy3 μm
Dial Reading0 to 70 to 0
Graduation MeasurementsMillimeters
Measuring Force0.4 N
Product Length0.47" (12 mm)

What's included with the Mitutoyo 513-501-10T


  • Pocket Dial Test Indicator
  • 2 x Holding Bars
