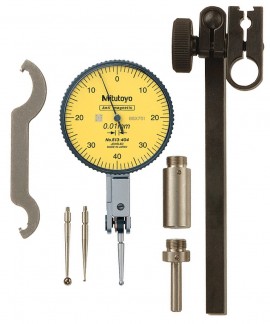

Mitutoyo 513-404T-10T Dial Test Indicator 0.8mm, 0.01 mm

Features jewelled bearings, carbide contact points, auto-reverse, and glare free, scratch resistant crystal.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Model: 513-404-10T

This horizontal dial test indicator is the horizontal type that features a yellow dial and a 0.01 mm graduation.

Learn More

Features

Anti-magnetic
Jewelled bearings
No-clutch structure
Water and dust resistant
Glare-free crystal with scratch-resistant coating
Metric dial faces in yellow
The most direct gear train design ever applied to Test Indicators means—higher level of sensitivity, reliability, repeatability and accuracy throughout tool life

Style	Horizontal
Min. Measurement(mm)	0.00
Max. Measurement (mm)	0.80
Dial Reading	0-40-0
Dial Graduation (mm)	0.0100
Dial Diameter (mm)	40.00
Dial Color	Yellow
Contact Point Length (Decimal Inch)	0.8228
Contact Point Length (mm)	20.90
Ball Diameter (Decimal Inch)	0.0780
Ball Diameter (mm)	1.00; 3.00
Accuracy (Decimal Inch)	0.008000
Accuracy (mm)	0.0080
Accuracy (micro m)	8.00
Number of Contact Points Included	2
