Mitutoyo 505-749 Series 505 Dial Caliper, 0 to 12", inch

Model: 505-749

Mitutoyo 505-749 Series 505 Dial Caliper, 0 to 12&quot;, inch-

Mitutoyo 505-749 Series 505 Dial Caliper, 0 to 12", inch

Model: 505-749

Designed for smooth operation, durability, and readability, this dial caliper provides highly accurate four-way measurements to ±0.002" and a measurement range of 0 to 12". In addition, this caliper offers ultra-smooth sliding with better shock protection while measuring outside dimensions, inside dimensions, depth, and steps.

Sale Price	$266.90 USD
Regular Price	$340.00 USD
Availability	2 to 3 Weeks3 to 4 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 505-749 Series 505 Dial Caliper

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Traceable Calibration Certificate for your 505-749 Series 505 Dial Caliper

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICAL1) for only $95.00 USD

Mitutoyo 505-749 Offers

Features

Provides ultra-smooth sliding with better shock protection while measuring outside dimensions, inside dimensions, depth, and steps
A Titanium Nitride (TiN) coating on the sliding surface increases wear resistance and the improved dial face offers faster measurement readability
The lock screw holds the dial measurement and sliding jaw position to obtain accurate measurements

Applications

Aerospace
Automotive
Defense
Electronics
Energy
General manufacturing
Plastics and rubber

Mitutoyo 505-749 Specifications

Range	0 to 12"
Accuracy	±0.002"
Graduation	0.001"
Pitch Per Revolution	0.2"
Units	Inch
Weight	0.8 lbs (370 g)

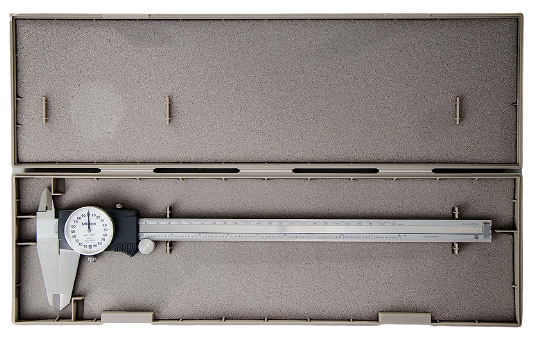

What's included with the Mitutoyo 505-749

Dial Caliper
Fitted Plastic Carrying Case

Ask a question about Mitutoyo 505-749 Series 505 Dial Caliper, 0 to 12", inch

Customer Reviews for the Mitutoyo 505-749
