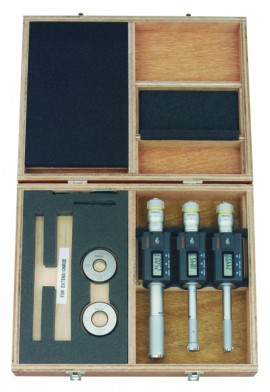

Mitutoyo 468-982 Digital 3-Point Internal Micrometer Set, 12 to 25 mm

Downloads: datasheet

Features titanium-coated measuring pins that give excellent durability and impact resistance with a range of 12 to 25 mm.

The digital 3-point internal micrometer set has a complete unit set.

Features

They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid
Large LCD display with character height of 7.5 mm enables you to read measurements easily
With setting rings but without extensions

Range:	12 to 25 mm
Individual Ranges:	12 to 16, 16 to 20, 20 to 25 mm
Digital Step:	0.001 mm
Mass:	1290 g
Accuracy:	12 to 20 mm: ±2 µm, 20 to 25 mm: ±3 µm (excluding quantizing error) - full contact of measuring surfaces must be established
Display:	LCD, character height 7.5 mm
Measuring Pins:	Titanium coated tungsten carbide (6 to 12 mm) Titanium coated hardened steel (12 to 100 mm) Taper: tungsten carbide
Measuring Face:	Titanium coated tungsten carbide (6 to 12 mm) Titanium coated hardened steel (12 to 100 mm) Taper: tungsten carbide
Power Supply:	1 battery SR-44
Battery Life:	Approx. 1.2 years
Zero/Abs:	Yes
Auto Power Off After 20 min. Non-Use:	Yes
Low Voltage Alarm:	Yes
Function Lock:	Yes
Hold:	Yes
2 x PRESET:	Yes
Data Output:	Yes

datasheet for the Mitutoyo 468-982 Digital 3-Point Internal Micrometer Set, 12 to 25 mm

The digital 3-point internal micrometer set has a complete unit set.

Features

They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid
Large LCD display with character height of 7.5 mm enables you to read measurements easily
With setting rings but without extensions

Range:	12 to 25 mm
Individual Ranges:	12 to 16, 16 to 20, 20 to 25 mm
Digital Step:	0.001 mm
Mass:	1290 g
Accuracy:	12 to 20 mm: ±2 µm, 20 to 25 mm: ±3 µm (excluding quantizing error) - full contact of measuring surfaces must be established
Display:	LCD, character height 7.5 mm
Measuring Pins:	Titanium coated tungsten carbide (6 to 12 mm) Titanium coated hardened steel (12 to 100 mm) Taper: tungsten carbide
Measuring Face:	Titanium coated tungsten carbide (6 to 12 mm) Titanium coated hardened steel (12 to 100 mm) Taper: tungsten carbide
Power Supply:	1 battery SR-44
Battery Life:	Approx. 1.2 years
Zero/Abs:	Yes
Auto Power Off After 20 min. Non-Use:	Yes
Low Voltage Alarm:	Yes
Function Lock:	Yes
Hold:	Yes
2 x PRESET:	Yes
Data Output:	Yes
