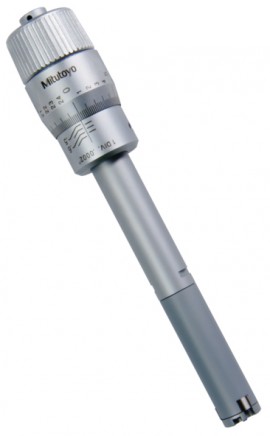

Mitutoyo 368-864 Series 368 Mechanical Holtest (Type II) Three-Point Internal Micrometer, 0.5 to 0.65", inch

Model: 368-864

Be the first to review this product

Precise and durable, this micrometer utilizes three self-centering anvils constructed of alloyed steel for accurate and efficient measurements of the inside dimensions of bores. In addition, it features a measurement range of 0.5 to 0.65" and an innovative design that allows for measurements closer to the bottom of blind bore holes.

Sale Price	$541.65 USD
Regular Price	$690.00 USD
Availability	4 to 5 Weeks
Quantity	Quantity

Mitutoyo 368-864 Offers

Features

Features three alloy steel anvils evenly spaced at 120° for true alignment of the axis bore for accurate, easily repeatable measurements
A hardened steel spindle with a carbide ball and cone with a carbide pin ensure accuracy and durability when extending and retracting the anvils
The ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements
The design allows for measurements closer to the bottom of blind bore holes
The scale on the thimble and sleeve is laser etched for easier reading in all conditions

Applications

Aerospace
Automotive
Defense
Electronics
Energy
General manufacturing
Plastics and rubber

Mitutoyo 368-864 Specifications

Range	0.5 to 0.65"
Accuracy	±0.00015"
Graduation	0.0002"
Units	Inch
Contact Point	Alloy steel
Measuring Method	Three-point method
Weight	5.29 oz (150 g)

Click here for complete specifications on the Mitutoyo 368-864

What's included with the Mitutoyo 368-864

Micrometer
Fitted Plastic Carrying Case

datasheet for the Mitutoyo 368-864 Series 368 Mechanical Holtest (Type II) Three-Point Internal Micrometer, 0.5 to 0.65", inch
