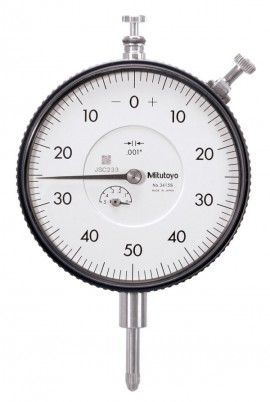

Mitutoyo 3415A Series 3 Large Face Dial Indicator with lug back, 0.5", ⅜"

Model: 3415A

$Mitutoyo 3415A Series 3 Large Face Dial Indicator with lug back, 0.5&quot;, &frac38;&quot;-$

Mitutoyo 3415A Series 3 Large Face Dial Indicator with lug back, 0.5", ⅜"

Model: 3415A

Measure surface variations with great accuracy displayed on an easy-to-read large dial face with this large face and long stroke dial indicator. In addition, this indicator offers excellent accuracy and reliability and features a lug back and a 0 to 0.5" range.

Sale Price	$153.86 USD
Regular Price	$196.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Mitutoyo 3415A Offers

Work with a long clamping range with this indicators stem design that suits many applications. In addition, this indicators crystal has a scratch and glare-resistant coating for clear readings and better durability.

Features

Lug back for mounting purposes
A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
Unique shock-proof mechanism which protects against shock from sudden spindle retraction
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
Four-screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
Crystal is glare-free with a scratch-resistant coating
Manufactured to meet ANSI/AGD and ISO/JIS standards
The absence of a through screw hole helps protect the indicator against water and oil permeation
The spindle and stem are constructed of hardened, high-strength steel

Applications

Aerospace
Automotive
Defense
Electronics
Energy
General manufacturing
Plastics and rubber

Mitutoyo 3415A Specifications

Units	Inch
Range	0 to 0.5" Revolution: 0.1"
Graduation	0.001"
Thread Type	4-48 UNF
Dial Reading	0-50-0
Back Type	Lug back
Accuracy	±0.001"
Measuring Force	1.8 or lessN
Stem	0.375"/9.52 mm
Contact Point	Carbide tipped, thread: 4-48UNF
Technology	Mechanical
Weight	0.57 lbs (259 g)

What's included with the Mitutoyo 3415A

Large Face Dial Indicator
Fitted Plastic Case
