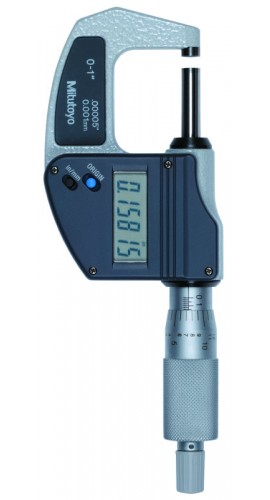

Mitutoyo 293-831-32 Digimatic Micrometer Series 293 MDC-Lite

Model: 293-831-32

Be the first to review this product

Mitutoyo 293-831-32 Digimatic Micrometer Series 293 MDC-Lite-

Downloads:

More Mitutoyo Products

Ask an Expert

Mitutoyo 293-831-32 Digimatic Micrometer Series 293 MDC-Lite

Model: 293-831-32

Be the first to review this product

*Formerly known as 293-831-30
This Mitutoyo Digital Micrometer features a 0-1" (0-25.4 mm) measuring range and displays both inch and metric units. The micrometer is equipped with a carbide-tipped measuring face, an LCD display, and a measuring force range of 5-10 N. Moreover, it includes a box, spanner, SR44 battery, and certificate of inspection.

Sale Price	$146.17 USD
Regular Price	$186.20 USD
Availability	1 Week1 to 2 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 293-831-32 Digimatic Micrometer Series 293 MDC-Lite

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIOMS1) for only $95.00 USD

Traceable Calibration Certificate for your 293-831-32 Digimatic Micrometer Series 293 MDC-Lite

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIOMS1) for only $95.00 USD

Mitutoyo 293-831-32 Offers

Features

Provided only with a zero-set key for easy origin setting
A ratchet stop or friction thimble for a constant measuring force
Measurement readout with large characters on the LCD screen
No spindle clamp. No data output
Supplied in fitted plastic case

Mitutoyo 293-831-32 Specifications

Resolution	0.001 mm or 0.00005"/0.001 mm
Flatness	0.3 μm/.000012"
Parallelism	2 μm/.00008"
Measuring faces	Carbide tipped
Display	LCD
Battery	SR44 (1 pc.), 938882
Battery life	Approx. 1.2 years under normal use
Function	Origin-set, Automatic power on/off, inch/mm conversion (inch/mm models)
Alarm	Low voltage, Counting value composition error

Click here for complete specifications on the Mitutoyo 293-831-32

What's included with the Mitutoyo 293-831-32

Mitutoyo 293-831-32 Digimatic Micrometer Series 293 MDC-Lite

Ask a question about Mitutoyo 293-831-32 Digimatic Micrometer Series 293 MDC-Lite

Customer Reviews for the Mitutoyo 293-831-32

Description ➕➖

Mitutoyo 293-831-32 Offers

Features

Provided only with a zero-set key for easy origin setting
A ratchet stop or friction thimble for a constant measuring force
Measurement readout with large characters on the LCD screen
No spindle clamp. No data output
Supplied in fitted plastic case

Specifications ➕➖

Mitutoyo 293-831-32 Specifications

Resolution	0.001 mm or 0.00005"/0.001 mm
Flatness	0.3 μm/.000012"
Parallelism	2 μm/.00008"
Measuring faces	Carbide tipped
Display	LCD
Battery	SR44 (1 pc.), 938882
Battery life	Approx. 1.2 years under normal use
Function	Origin-set, Automatic power on/off, inch/mm conversion (inch/mm models)
Alarm	Low voltage, Counting value composition error
