The flat-back indicator features a 0.38" (9.5 mm) stem diameter for secure placement. It also offers 4 to 48 UNF thread.
The flat-back indicator features a 0.38" (9.5 mm) stem diameter for secure placement. It also offers 4 to 48 UNF thread.

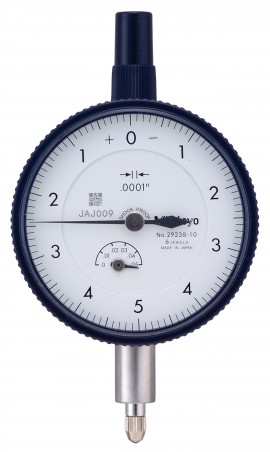

The Mitutoyo 2923SB-10 Series 2 Standard Flat-Back Dial Indicator offers inch readings with precise accuracy. The stem features a 0.38" (9.5 mm) diameter with threading for easy setup with the rest of your equipment.
Features
| Supported Measurement Unit(s) | in |
| Measurement Range | Range/Per Revolution: 0.05"/0.01" |
| Accuracy | 0.0001" first 2.5 revolutions; 0.0002" overall |
| Dial Reading | 0 to 5 to 0 |
| Dial Color | White |
| Graduation Measurements | Inches |
| Measuring Force | 2 N or less |
| Supported Measurement Unit(s) | in |
| Measurement Range | Range/Per Revolution: 0.05"/0.01" |
| Accuracy | 0.0001" first 2.5 revolutions; 0.0002" overall |
| Dial Reading | 0 to 5 to 0 |
| Dial Color | White |
| Graduation Measurements | Inches |
| Measuring Force | 2 N or less |
