Mitutoyo 264-156A Processing Unit, arm-mount type

Model: 264-156A

Be the first to review this product

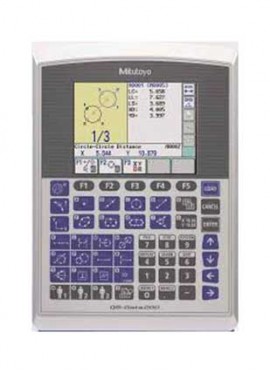

Mitutoyo 264-156A Processing Unit, arm-mount type-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 264-156A Processing Unit, arm-mount type

Model: 264-156A

Be the first to review this product

Features powerful 2-D coordinate measurement capabilities with and simple key operation, this processing unit is for optical instruments such as a profile projector. Additionally, this instrument improves operator productivity and minimizes errors.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Mitutoyo 264-161-13 QM-DATA200 (Arm type) 2D Data processor w/o power cord

Model: 264-161-13

The QM 200 Data Processor is specially designed for processing data generated by measurements made with profile projectors and measuring microscopes.

Learn More

Mitutoyo 264-156A Offers

Features

Various graphic displays on the large colored LCD screen for easy measurement operations
One-key operation for combined measurements that are often used (circle-circle distance, etc.)
The AI measurement function (automatic identification of measuring item) eliminates switching between the measurement command keys
Equipped with the measurement procedure teaching function and the measuring position navigation in Repeat mode
The user menu function allows user to register measurement commands or part programs to create his/her own menu
Tolerance zone measurement of data processing result and various statistical processing for each item are available
Measurement result output to "MS - Excel" in spreadsheet (CSV) format
The measurement procedure and measurement result can be saved, using the usb drive

Mitutoyo 264-156A Specifications

Resolution	0.0001 mm
Program Functions	Part program creation, execution, editing
Statistical Processing	Number of data, maximum value, minimum value, mean value, standard deviation, range, histogram
Display System	Monographic LCD (320 x 240 dots, with backlight)
Measurement Result File Output	RS-232C output (CSV format, MUX-10F format)
Display Language	Japanese/English/German/French/Italian/Spanish/Portuguese/Swedish/Polish/Dutch/Hungarian
Data Input	USB/RS-232C, X/Y/Z-axis signal, Footswitch
Data Output	RS-232C, USB
Power Supply	100 to 240 V AC
Weight	4.6 lbs (2.08 kg)

Click here for complete specifications on the Mitutoyo 264-156A

What's included with the Mitutoyo 264-156A

Processing Unit
Printer Cable
Recording Paper
AC Adapter

datasheet for the Mitutoyo 264-156A Processing Unit, arm-mount type datasheet for the Mitutoyo 264-156A Processing Unit, arm-mount type
