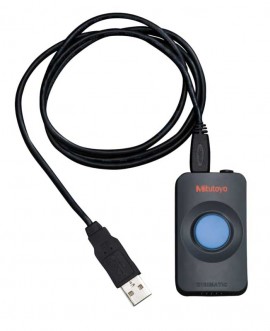

Mitutoyo 264-016-10 USB Input Tool, 3.3' (1 m)

Model: 264-016-10

Be the first to review this product

For use to input data from a digimatic measuring unit to a computer or laptop with USB ports.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Mitutoyo 264-020 USB Input Tool Interface Box for the digimatic

Model: 264-020

Directly connect Digimatic measuring devices to a USB interface without needing additional software with this USB input tool interface box. In addition, this input tool is for inputting the measurement data of a measuring tool into a PC.

Learn More

Mitutoyo 264-016-10 Offers

Features

Measurement data is converted into keyboard codes, enabling interaction with any program working with keyboard entries
Connect to a USB with fixed COM assignment in Microsoft Windows as a channel identification (VCP) with USB IT PAK software only
The USB-IT PAK software lets you easily create Microsoft Excel worksheets

Mitutoyo 264-016-10 Specifications

Data Input	1x Digimatic/Digimatic 2
Data Output	USB Virtual COM-Port (VCP) with USB IT PAK, USB keyboard signal (HID)
Output Decimal Mark	Emulates the local setting
Footswitch Connector	Yes
Cable Length	3.3' (1 m)
Power Supply	Bus power
Maximum Connectable Devices	Microsoft Windows 2000, XP: 100 cables, Windows Vista, 7, 8, 8. 1, 10: 20 cables
OS Compatibility	Microsoft Windows 2000, XP, Vista, 7, 8, 8.1, 10 (32bit, 64bit)
Dimensions	1.5 x 2.5 x 0.8" (38 x 64 x 21 mm)
Weight	0.12 lb (56 g)

Click here for complete specifications on the Mitutoyo 264-016-10

What's included with the Mitutoyo 264-016-10

Mitutoyo 264-016-10 USB Input Tool, 3.3' (1 m)

datasheet for the Mitutoyo 264-016-10 USB Input Tool, 3.3' (1 m) datasheet for the Mitutoyo 264-016-10 USB Input Tool, 3.3' (1 m)

Ask a question about Mitutoyo 264-016-10 USB Input Tool, 3.3' (1 m)

Customer Reviews for the Mitutoyo 264-016-10

Description ➕➖

Mitutoyo 264-016-10 Offers

Features

Measurement data is converted into keyboard codes, enabling interaction with any program working with keyboard entries
Connect to a USB with fixed COM assignment in Microsoft Windows as a channel identification (VCP) with USB IT PAK software only
The USB-IT PAK software lets you easily create Microsoft Excel worksheets

Specifications ➕➖

Mitutoyo 264-016-10 Specifications

Data Input	1x Digimatic/Digimatic 2
Data Output	USB Virtual COM-Port (VCP) with USB IT PAK, USB keyboard signal (HID)
Output Decimal Mark	Emulates the local setting
Footswitch Connector	Yes
Cable Length	3.3' (1 m)
Power Supply	Bus power
Maximum Connectable Devices	Microsoft Windows 2000, XP: 100 cables, Windows Vista, 7, 8, 8. 1, 10: 20 cables
OS Compatibility	Microsoft Windows 2000, XP, Vista, 7, 8, 8.1, 10 (32bit, 64bit)
Dimensions	1.5 x 2.5 x 0.8" (38 x 64 x 21 mm)
Weight	0.12 lb (56 g)
