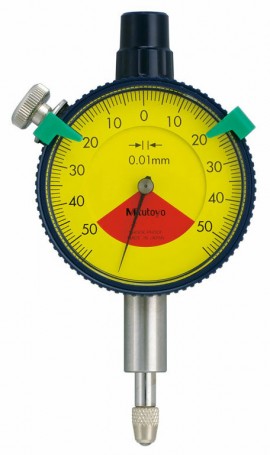

Mitutoyo 1929AB-62 Series 1 Compact One Revolution Dial Indicator with flat back, 0 to 1 mm, metric, waterproof

The revolution-type indicator offers error-free readings. It makes it easy to tell between "within tolerance" and "out of tolerance."

Features

Unique shock-proof mechanism protects against shock from sudden spindle retraction
Thumb screw bezel lock is easy-to-use for zeroing
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
Four-screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
The indicator is anti-magnetic for better accuracy around metals
Crystal is glare-free with a scratch-resistant coating
Manufactured to meet ISO/JIS standards

Applications

Supported Measurement Unit(s)	mm
Measurement Range	0 to 1 mm; 1.4 mm full stroke
Accuracy	0.011 mm
Dial Reading	50 to 0 to 50
Dial Color	Multi
Graduation Measurements	Millimeters
Measuring Force	1.4 N or less
