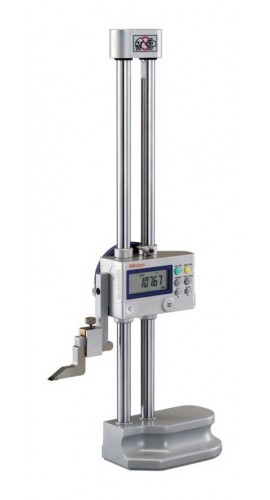

Mitutoyo 192-630-10 Digimatic Height Gauge, double column, 0 to 12"

Model: 192-630-10

Be the first to review this product

Mitutoyo 192-630-10 Digimatic Height Gauge, double column, 0 to 12"-

Downloads: datasheet

More Mitutoyo Products

Ask an Expert

Mitutoyo 192-630-10 Digimatic Height Gauge, double column, 0 to 12"

Model: 192-630-10

Be the first to review this product

Comes equipped with double-column which provides high accuracy measurement. Additionally, this digital height gauge features SPC data output, zero-setting, ABS/INC switching and inch to mm conversion with a measuring range of 0 to12" (0 to 300 mm).

Sale Price	$1570.00 USD
Regular Price	$2000.00 USD
Availability	1 Week
Quantity	Quantity

Mitutoyo 192-630-10 Offers

Features

Switchable resolution
Easy-to-use standard type
Double-column structure ensures high measuring accuracy
Coarse/fine feed switching
Two preset reference heights
Low voltage alarm
Counting value composition error

Mitutoyo 192-630-10 Specifications

Range	0 to 12" (0 to 300 mm)
Resolution	0.0005 to 0.0002" (0.01 to 0.005 mm) Switchable
Display	LCD, 7-digit charter height 11 mm
Maximum Response Speed	500 mm/s
Battery	SR44, 938882
Battery Life	Approximately 2000 hours under normal use

Click here for complete specifications on the Mitutoyo 192-630-10

What's included with the Mitutoyo 192-630-10

Height Gauge
Scriber Clamp
Carbide Tipped Scriber

datasheet for the Mitutoyo 192-630-10 Digimatic Height Gauge, double column, 0 to 12" datasheet for the Mitutoyo 192-630-10 Digimatic Height Gauge, double column, 0 to 12"

Ask a question about Mitutoyo 192-630-10 Digimatic Height Gauge, double column, 0 to 12"

Customer Reviews for the Mitutoyo 192-630-10

Description ➕➖

Mitutoyo 192-630-10 Offers

Features

Switchable resolution
Easy-to-use standard type
Double-column structure ensures high measuring accuracy
Coarse/fine feed switching
Two preset reference heights
Low voltage alarm
Counting value composition error

Specifications ➕➖

Mitutoyo 192-630-10 Specifications

Range	0 to 12" (0 to 300 mm)
Resolution	0.0005 to 0.0002" (0.01 to 0.005 mm) Switchable
Display	LCD, 7-digit charter height 11 mm
Maximum Response Speed	500 mm/s
Battery	SR44, 938882
Battery Life	Approximately 2000 hours under normal use
