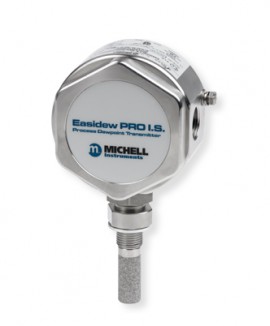

Measure moisture in process and refinery applications in gases or non-polar liquids, this Easidew PRO I.S. transmitter is integrated into existing systems and has global certifications for use in hazardous areas. In addition, it has a two-wire dew-point and an ATEX certified with -148 to 68°F (-100 to 20°C) dp range.
Measure moisture in process and refinery applications in gases or non-polar liquids, this Easidew PRO I.S. transmitter is integrated into existing systems and has global certifications for use in hazardous areas. In addition, it has a two-wire dew-point and an ATEX certified with -148 to 68°F (-100 to 20°C) dp range.
Features
Applications
| Measurement Range | 148 to 68°F (-100 to 20°C) dew point |
| Accuracy | ±1.8°F (±1°C) dew point (20 to -60°C/68 to -76°F) ±3.6°F (±2°C) dew point (-60 to -110°C/-76 to -166°F) |
| Repeatability | 0.9°F (0.5°C) dew point |
| Calibration | Traceable 13-point calibration and certificate |
| Response Time | 5 mins to T95 (dry to wet) |
| Output Signal | 4 to 20 mA (2-wire connection, current source); User configurable over range |
| Supply Voltage | 12 to 28 V DC |
| Temperature | Operating: -40 to 140°F (-40 to 60°C) Storage: -40 to 140°F (-40 to 60°C) |
| Operating Pressure | 45 MPa (450 barg/6526.7 psig) maximum |
| Ingress Protection | IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance with standard NEMA 250-2003 |
| Housing Material | 316 stainless steel |
| Weight | 2.8 lbs (1.27 kg) |
| Measurement Range | 148 to 68°F (-100 to 20°C) dew point |
| Accuracy | ±1.8°F (±1°C) dew point (20 to -60°C/68 to -76°F) ±3.6°F (±2°C) dew point (-60 to -110°C/-76 to -166°F) |
| Repeatability | 0.9°F (0.5°C) dew point |
| Calibration | Traceable 13-point calibration and certificate |
| Response Time | 5 mins to T95 (dry to wet) |
| Output Signal | 4 to 20 mA (2-wire connection, current source); User configurable over range |
| Supply Voltage | 12 to 28 V DC |
| Temperature | Operating: -40 to 140°F (-40 to 60°C) Storage: -40 to 140°F (-40 to 60°C) |
| Operating Pressure | 45 MPa (450 barg/6526.7 psig) maximum |
| Ingress Protection | IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance with standard NEMA 250-2003 |
| Housing Material | 316 stainless steel |
| Weight | 2.8 lbs (1.27 kg) |
