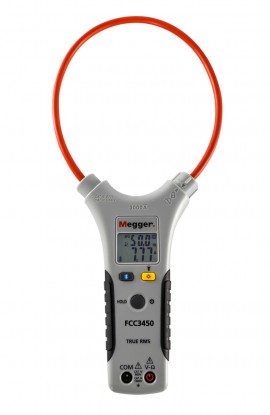

Megger FCC3450 Flexible Clamp Meter, 3000 A

Model: FCC3450 | Order No: 1013-833 | UPC: 5036175231371

Be the first to review this product

Megger FCC3450 Flexible Clamp Meter, 3000 A-

Downloads: datasheet manual

More Megger Products

Ask an Expert

Megger FCC3450 Flexible Clamp Meter, 3000 A

Model: FCC3450 | Order No: 1013-833 | UPC: 5036175231371

Be the first to review this product

The FCC3450 is a Bluetooth enabled flexible current clamp, designed to make AC/DC voltage, resistance, continuity, frequency, and capacitnce measurements, as well as AC current up to 3000 A.

Sale Price	$304.20 USD
Regular Price	$360.00 USD
Availability	2 to 3 Weeks5 Days
Quantity	Quantity

Traceable Calibration Certificate for your FCC3450 Flexible Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Traceable Calibration Certificate for your FCC3450 Flexible Clamp Meter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTICM1) for only $105.00 USD

Megger FCC3450 Offers

The FCC3450 measures True RMS voltage up to 1000 V AC/DC, comes with built-in display with 10 000count resolution and meets CAT IV 600 V and CAT III 1000 V AC/DC safety standards. Due to the length and flexibility of the coil, measurements can be made around large conductors, or those conductors inaccessible to a fixed-head clamp.

Using Bluetooth, the FCC3450 can be paired with the free Megger Link™ app, giving you the ability to collect remote live readings or record measurements directly to your smart device for storage or report creation. The app is compatible with iOS and Android and allows you to capture trending and graphing data to share with your team or for faster diagnosis and detection of faults.

Features

High flexibility ideal for commercial/industrial applications, General Electrical Test (GET), Low Voltage Installation (LVI)
Great fit for electric power transmission, load balancing on generators/3phase systems, welding, pulsed power applications
Utilizes Rogowski principle for measuring currents up to 3000A
Input terminals allow leads to be connected to instrument for measuring AC + DC voltage up to 1000V
Fully automatic measuring on AC current, AC/DC voltage, resistance, frequency
Offers resistance/continuity measurement with buzzer, True RMS voltage readings
Length/flexibility of coil allows for measurements around large conductors/conductors inaccessible to fixedhead clamps
Rogowski coil offers higher flexibility due to lack of rigid iron core reliability
Easy to get around larger conductors, easy to reach into tight spaces
Lack of need to install remote sensors enables faster diagnosis/detection of faults
Safely collect live data readings from instrument to mobile phone via Bluetooth communication
Compatible with Megger Link app for capturing shareable trending/graphing data
Backlight/worklight for jobs within darker spaces
DATA HOLD feature on all ranges for ease of reading measurements
Auto PowerOff function works to conserve battery life after continued inactivity
Low battery LED indicator alerts user of dwindling power
Designed to withstand 8.1 kV transient according to IEC61010 safety standards
CAT IV 600V/CAT III 1000V safety rating

Applications

Monitoring and diagnosing electrical systems in industrial environments

Megger FCC3450 Specifications

AC Current
Range	30 A / 300 A / 3000 A
Accuracy	±(3% + 5 digits)
Resolution	0.01 to 1 A
Minimal Reading Current	1 A
Crest factor	Up to 3
Position Error of Clamp	Distance from Optimum: 1.4" (35 mm), Accuracy: ±1.0% 2.0" (50 mm), Accuracy: ±1.5% 2.4" (60 mm),Accuracy: ±2.0%
AC Voltage
AC Response	True RMS
Range	1000 V
Resolution	0.1 V
Accuracy	±(1.5% + 5 digits)
Bandwidth	45 to 500 Hz
Minimal Reading Voltage	3 V
DC Voltage
Range	1000 V
Accuracy	0.1 V
Resolution	±(0.7% + 5 digits)
Minimal Reading Voltage	+2.4 V / -0.7 V
Frequency
Range	100 Hz to 10 kHz
Resolution	0.01 to 1 Hz
Accuracy	±(0.3% + 3 digits)
Sensitivity	From 3 A and from 10 V, depending on range
Minimal Reading Frequency	10 Hz
Resistance
Range	1000 Ω and 10 kΩ
Resolution	1 Ω
Accuracy	±(0.9% + 2 digits)
Continuity	Yes, with buzzer (less than 20 Ω)
Function	HOLD
General Specifications
Display	LCD display with backlight
Counts	10,000 counts
Overload Display	OL or OL
Probe Diameter	11 mm
Maximum Conductor	458 mm
Measuring Rate	Up to 2 samples per second
Response Time	2 s
Interface	Bluetooth® (Low Energy 4.0, effective range: open air 10 m)
Temperature Coefficient	0.1 × (specified accuracy) / °C (<18°C or >28°C)
Environmental Conditions	Operating temperature: ≤80% R.H.: 14 to 86°F (-10 to 30°C) ≤75% R.H.: 86 to 104°F (30 to 40°C) ≤45% R.H.: 104 to 122°F (40 to 50°C) Storage temperature: -4 to 140°F (-20 to 60°C) ≤80% R.H., no batteries Operating altitude: 6562' (2000 m) maximum Drop protection: 1.2 m drop to hardwood on concrete floor Vibration: Random vibration per MIL-PRF-28800F Class 2
Category Rating	600 V CAT IV, 1000 V CAT III
Standards	IEC/EN 61010-1, EN 61010-2-032, EN 61010-2-033
Battery	Type: 2 Batteries, IEC LR6, Alkaline (AA) Life: 60 hours
Auto Power Off	After 20 minutes
Dimensions	120 x 288 x 35 mm
Weight	230 g (without batteries)

Click here for complete specifications on the Megger FCC3450

What's included with the Megger FCC3450

FCC3450 True RMS AC/DC Flexible Clamp Meter
Set of Test Leads
Carrying Case
AAA Batteries

datasheet for the Megger FCC3450 Flexible Clamp Meter, 3000 A manual for the Megger FCC3450 Flexible Clamp Meter, 3000 A
