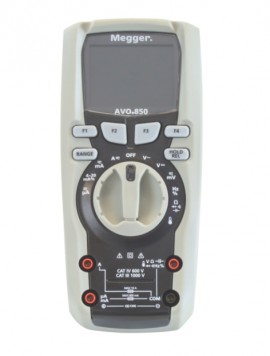

Megger AVO850 True RMS AC/DC Data Logging Multimeter, 1000V-

Downloads: datasheet manual

More Megger Products

Ask an Expert

Megger AVO850 True RMS AC/DC Data Logging Multimeter, 1000V

Model: AVO850 | Order No: 1015-515 | UPC: 5036175222614

Be the first to review this product

The AVO850 is a professional True-RMS digital multimeter with TFT colour LCD screen with 50,000-count display. This multimeter combines a range of features, precise measurements, and quality construction into a tool of exceptional value. Easy to use and built to last, the AVO850 offers long-term stability for everyday use.

Your Price	$576.00 USD
Availability	2 to 3 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your AVO850 True RMS AC/DC Data Logging Multimeter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Traceable Calibration Certificate for your AVO850 True RMS AC/DC Data Logging Multimeter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Megger AVO850 Offers

The AVO850 multimeter supports a wide array of measurements, including AC/DC voltage up to 1000 V, AC/DC current up to 10 A, resistance, frequency up to 10 MHz, capacitance up to 10 mF, and temperature. It also features continuity testing with audible and visual indicators, diode testing, and 420 mA process loop measurement with percentage readings, making it versatile for various applications. It also offers Bluetooth connectivity, enabling real-time data sharing with iOS and Android devices through the Megger app.

Features

True-RMS AC current and voltage measurements
Current measurement up to 10 A (20 A possible for 30 seconds maximum)
Measure frequency up to 10 MHz
10mF capacitance range
Resistance, continuity, and diode measurements
4-20mA process loop measurement with % reading, AC+DC and LoZ
Type K thermocouple input for temperature measurement
High-accuracy of ±0.05% ensures reliable data even with non-sinusoidal waveforms
High-resolution 50,000count, 320 x 240 TFT color LCD with analog bar graph
Datalogging and trend capture features allow users to monitor and record measurements over time for detailed analysis
Li-ion rechargeable battery; includes AC adapter and charger
Bluetooth interface and compatible with the Megger app
Safety rated CAT III 1000 V, CAT IV 600 V
IP40 (waterproof and dustproof) rating
Designed and tested to withstand a 6.6' (2 m) drop

Applications

AC/DC Voltage and Current Measurement: Ideal for verifying power supply and circuit integrity in industrial equipment, motor controls, and automation systems.
High-Frequency Measurement: With frequency measurement capabilities up to 10 MHz, it is useful in environments where electronic components operate at high frequencies.
Process Control Loop Testing: The 420 mA loop measurement function is valuable for testing industrial control systems and ensuring accurate signal transmission in-process controls.
Resistance and Continuity Testing: Essential for locating faulty connections, broken wires, and identifying continuity issues in electrical installations.
Diode Testing: Allows technicians to check the operation of diodes and semiconductor components, which is crucial in maintenance and repair tasks.
Capacitance Measurement: Useful for assessing capacitors in AC systems and testing electrical storage elements within various electronic devices.
True RMS Measurement: Measures true root-mean-square values accurately for non-linear loads, helping identify issues in power quality caused by harmonics in commercial and residential power systems.
DataLogging and Trend Analysis: Enables extended monitoring of electrical parameters to detect fluctuations and patterns over time, which is valuable for preventive maintenance.
Temperature Measurement: Its temperature measurement capability supports HVAC applications, such as verifying thermostat accuracy, and assessing temperature-sensitive components in renewable energy systems.
Testing for Solar Panels and Wind Turbines: Used for measuring voltage and current in renewable energy installations, ensuring proper operation, and identifying any performance issues.
Precision Measurement: High-accuracy voltage and resistance measurements support the needs of laboratory testing, research, and electronics design, where precision is essential.
Capacitance and Frequency Testing: Assists in analyzing components and circuits in electronic design and development.
Diagnostic Testing on Vehicle Electronics: Useful for checking battery voltage, testing alternators, and examining sensors and circuits within vehicles, making it ideal for automotive diagnostics.

Megger AVO850 Specifications

AC Voltage
500 mV	Resolution: 0.01 mV 50/60 Hz: (±0.5% +5) < 1 kHz: ±(1.0% + 5) < 5 kHz: ±(3.0% + 5) <20 kHz: ±(5.5% + 20) upper 10 % of range.
5 V	Resolution: 0.0001 V 50/60 Hz: ±(0.5% + 5) < 1 kHz: ±(1.0% + 5) < 5 kHz: ±(3.0% + 5) <20 kHz: ±(5.5% + 20) upper 10 % of range.
50 V	Resolution: 0.001 V 50/60 Hz: ±(0.5% + 5) < 1 kHz: ±(1.0% + 5) < 5 kHz: ±(3.0% + 5) <20 kHz: ±(5.5% + 20) upper 10 % of range.
500 V	Resolution: 0.01 V 50/60 Hz: ±(1.5% + 10) < 1 kHz: ±(1.5% + 10) < 5 kHz: ±(3.5% + 10) <20 kHz: unspecified upper 10 % of range.
1000 V	Resolution: 0.1 V 50/60 Hz: ±(1.5% + 10) < 1 kHz: ±(1.5% + 10) < 5 kHz: unspecified <20 kHz: unspecified upper 10 % of range.
DC Voltage
500 mV* * When using the relative mode (REL Q) to compensate for offsets.	Resolution: 0.01 mV Accuracy: ±(0.1% + 5 digits)
5 V	Resolution: 0.0001 V Accuracy: ±(0.05% + 5 digits)
50 V	Resolution: 0.001 V Accuracy: ±(0.05% + 5 digits)
500 V	Resolution: 0.01 V Accuracy: ±(0.05% + 5 digits)
1000 V	Resolution: 0.1 V Accuracy: ±(0.1% + 5 digits)
(AC+DC)
5 V	Resolution: 0.0001 V < 1 kHz: ±(1.2% + 20) < 5 kHz: ±(3.0% + 20)
50 V	Resolution: 0.001 V < 1 kHz: ±(1.2% + 20) < 5 kHz: ±(3.0% + 20)
500 V	Resolution: 0.01 V < 1 kHz: ±(1.2% + 20) < 5 kHz: ±(3.0% + 20)
1000 V	Resolution: 0.1 V < 1 kHz: ±(1.2% + 20) < 5 kHz: ±(3.0% + 20)
Resistance
500 Ω	Resolution: 0.01 Ω Accuracy: ±(0.20% + 10)
5 kΩ	Resolution: 0.0001 kΩ Accuracy: ±(0.20% + 5)
50 kΩ	Resolution: 0.001 kΩ Accuracy: ±(0.20% + 5)
500 kΩ	Resolution: 0.01 kΩ Accuracy: ±(0.50% + 5)
5 MΩ	Resolution: 0.0001 MΩ Accuracy: ±(0.50% + 5)
50 MΩ	Resolution: 0.001 MΩ Accuracy: ±(2.0% + 10)
Temperature (Type-K)
-200 to 1350 °C	Resolution: 0.1 °C Accuracy: ±(1.0% reading + 3.0 °C) ±(1.0% reading + 5.4 °F) Note: Probe accuracy not included 1. Does not include error of the thermocouple probe. 2. Accuracy specification assumes ambient temperature stable to ±1 °C. 3. Over long use, reading may increase by 2 °C. 4. Accuracy for <-50 °C range: ±(3% + 5 °C)
DC Current
500 µA	Resolution: 0.01 µA Accuracy: ±(0.2% + 5)
5000 µA	Resolution: 0.1 µA Accuracy: ±(0.2% + 5)
50 mA	Resolution: 0.001 mA Accuracy: ±(0.2% + 5)
500 mA	Resolution: 0.01 mA Accuracy: ±(0.3% + 8)
10 A	Resolution: 0.001 A Accuracy: ±(0.5% + 8)
AC Current
500 µA	Resolution: 0.01 µA Accuracy: ±(0.8% + 5) for <1 kHz ±(3% + 5) for <5 kHz
5000 µA	Resolution: 0.1 µA Accuracy: ±(0.8% + 5) for <1 kHz ±(3% + 5) for <5 kHz
50 mA	Resolution: 0.001 mA Accuracy: ±(0.8% + 5) for <1 kHz Accuracy: ±(3% + 5) for <5 kHz
500 mA	Resolution: 0.01 mA Accuracy: ±(0.8% + 5) for <1 kHz ±(3% + 5) for <5 kHz
10 A	Resolution: 0.001 A Accuracy: ±(0.8% + 5) for <1 kHz ±(3% + 5) for <5 kHz
Note	All AC current ranges are specified from 5% of range to 100% of range
Capacitance
5 nF* * With a film capacitor or better, using relative mode (REL) to zero residual	Resolution: 0.001 nF Accuracy: ±(1.5% + 20)
50 nF	Resolution: 0.01 nF Accuracy: ±(1.5% + 8)
500 nF	Resolution: 0.1 nF Accuracy: ±(1.0% + 8)
5 µF	Resolution: 0.001 µF Accuracy: ±(1.5% + 8)
50 µF	Resolution: 0.01 µF Accuracy: ±(1.0% + 8)
500 µF	Resolution: 0.1 µF Accuracy: ±(1.5% + 8)
10 mF	Resolution: 0.01 mF Accuracy: ±(2.5% + 20)
Electronic Frequency
50 Hz	Resolution: 0.001 Hz Accuracy: ±(0.01% + 5) Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
500 Hz	Resolution: 0.01 Hz Accuracy: ±(0.01% + 5) Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
5 kHz	Resolution: 0.0001 kHz Accuracy: ±(0.01% + 5) Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
50 kHz	Resolution: 0.001 kHz Accuracy: ±(0.01% + 5) Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
500 kHz	Resolution: 0.01 kHz Accuracy: ±(0.01% + 5) Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
5 MHz	Resolution: 0.0001 MHz Accuracy: ±(0.01% + 5) Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
10 MHz	Resolution: 0.001 MHz Accuracy: Unspecified Sensitivity: 2 V rms min. at 20 to 80% duty cycle and <100 kHz 5 V rms min at 20 to 80% duty cycle and >100 kHz.
Electrical Frequency
10.00 Hz to 10 kHz	Resolution: 0.01 Hz - 0.001 kHz Accuracy: ±(0.5% reading) Sensitivity: 2 V rms
Duty Cycle
0.1 to 99.90%	Resolution: 0.01% Accuracy: ±(1.2% reading + 2 digits) Pulse width: 100 µs to 100 ms Frequency: 5 Hz to 150 kHz
General Specifications
Maximum voltage	1000 V (between any terminal and earth ground)
Fuse protection	F1 - A inputs: 10 A, 1000 V, 30 kA F2 - mA input: 800 mA, 1000 V, 30 kA
Display	50 000 count, TFT LCD, 20x per second
Enclosure	Double molded, IP40 rating
Environmental Conditions	Operating temperature: 41 to 104°F (5 to 40 °C) Storage temperature: '-4 to 140°F (-20 to 60°C) Operating humidity: Max 80% up to 87°F (31 °C), decreasing linearly to 50% at 104°F (40°C) Storage humidity: 50% at 104 °F (40 °C) Altitude: 2000 m maximum Shock (drop test): 6.5' (2 m)
Battery	Lithium polymer battery (NEDA 1604, 1200 mAh, 7.4 V, 8.88 Wh) Battery life: 300 to 500 charge cycles
Safety	IEC 61010-1: Pollution Degree 2, IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V
EMC	IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A, IEC 61326-2-2
Dimensions	170 x 79 x 50 mm
Weight	376 g (with battery: 416 g)

Click here for complete specifications on the Megger AVO850

What's included with the Megger AVO850

AVO850AC/DC Multimeter
2 x 4mm Non-fused, Right Angle to Straight Connector Test Leads, 1.1 m
2 x 4mm Exposed Metal Probes
2 x Exposed Tip Probes for CAT II Probing
2 x 4mm Cap Plugs
Red And Black Crocodile Clips
K-type Thermocouple Lead
K-type Multimeter Adapter
Rechargeable Battery
Universal Mains Charger
Soft Case and Carry Loop
