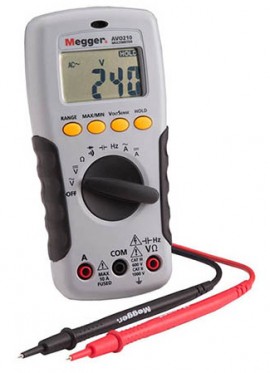

General purpose multimeter suitable for electricians, heating engineers and alarm technicians. The additional features make this instrument useful for a wide rage of applications. The instrument offers AC and DC voltage and current measurements as well as resistance, frequency and capacitance ranges.
General purpose multimeter suitable for electricians, heating engineers and alarm technicians. The additional features make this instrument useful for a wide rage of applications. The instrument offers AC and DC voltage and current measurements as well as resistance, frequency and capacitance ranges.
Features
Auto-ranging
When first selected, all functions are auto-ranging. A range button on the AVO210 allows multiple manual range selection on each function. The instrument has a MIN MAX function that allows the user to switch between minimum and maximum measurements. The display does not have to be continually monitored to capture a momentary increase or fall in readings.
Data Hold
This function allows a displayed result to be frozen which avoids having to remember a measurement value. The hold function can be nested within the MIN MAX feature which stops the AVO210 continuously updating the minimum and maximum values.
Voltage Measurements
Both AC and DC voltage measurements up to 750 V and 1000 V respectively are possible with the AVO210.
Current Measurements
A separate fused terminal is provided for current measurements up to 10 A for both AC and DC.
Continuity / diode testing
The continuity function features a buzzer and provides the user both optical and audible indication of identifying and confirming continuity between two points. This function also allows forward and reverse bias testing of diode and semiconductor junctions.
Voltsense function
The AVO210 has a built in non-contact voltage sensor fitted in the top of the instrument that is activated by the Voltsense button.
Resistance, capacitance and frequency
Resistance can be measured directly on the ohms range from 0 to 20 MΩ with capacitance measurements from 0 to 2.000 mF. In addition, frequency measurements from 0 to 20 MHz are possible.
| Display | 2000 counts |
| Polarity | Automatic, positive implied, negative indicated |
| Over-range indication | "OL" or "-OL" |
| Battery indicator | "<" is displayed when the batteries voltage drops below operating voltage |
| Auto power down | Approx 10 minutes |
| Operating ambient | Non-condensing ≤10 °C, 11 °C ~ 30 °C (≤80% R.H) 31°C ~ 40 °C (≤75% R.H), 41 °C ~ 50 °C (≤45% R.H)M |
| Storage temperature range and humidity | -20 to 60 °C, 0 to 80% R.H. when battery removed from meter |
| Temperature co-efficient | 0.15 x (Spec. Accy.) / °C, < 18 °C or > 28 °C |
| Sample rate | Samples 2 times per second nominal |
| Maximum altitude | 6561.7 ft (2000 m) |
| Display | 2000 counts |
| Polarity | Automatic, positive implied, negative indicated |
| Over-range indication | "OL" or "-OL" |
| Battery indicator | "<" is displayed when the batteries voltage drops below operating voltage |
| Auto power down | Approx 10 minutes |
| Operating ambient | Non-condensing ≤10 °C, 11 °C ~ 30 °C (≤80% R.H) 31°C ~ 40 °C (≤75% R.H), 41 °C ~ 50 °C (≤45% R.H)M |
| Storage temperature range and humidity | -20 to 60 °C, 0 to 80% R.H. when battery removed from meter |
| Temperature co-efficient | 0.15 x (Spec. Accy.) / °C, < 18 °C or > 28 °C |
| Sample rate | Samples 2 times per second nominal |
| Maximum altitude | 6561.7 ft (2000 m) |
