Mark-10 ESM303 Motorized Tension/Compression Test Stand, 300 lbF

Model: ESM303

Be the first to review this product

Rugged design suitable for laboratory and production environments, this test stand is highly configurable and ideal for tension and compression measurement up to 300 lbF (1.5 kN). In addition, the easy-to-use menu allows the configuration of test speed, force and distance limits, cycling, preload, and more, all protected by a password.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Mark-10 F305-IM Advanced Test Frame with IntelliMESUR, 300 lbF, vertical

Model: F305-IM

Ideal for tension and compression force testing applications with a force capacity up to 300 lbF (1.3 kN), this vertical test frame is exceptionally rigid with custom extrusion designs engineered for stiffness. In addition, it is conveniently modular, features easy-to-service electronics, and comes equipped with IntelliMESUR software.

Learn More

Mark-10 F305-IMT Advanced Test Frame with tablet and IntelliMESUR, 300 lbF, vertical

Model: F305-IMT

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Recommended Accessories

Mark-10 09-1214 Multi-function Cable, Series 7/5/4 to ESM303 Test Stand

09-1214

Mark-10 AC1094-1 Single column extension for the F105/F305/F505/F505H, 6"

AC1094-1

Mark-10 AC1095-3 Double Column Extension, 24"

AC1095-3

Mark-10 M5-100 Series 5 Advanced Digital Force Gauge, 100 x 0.02 lbF

M5-100

Mark-10 AF008 FollowMe Option for EM303 and EM303H Test Stands

AF008

Mark-10 M7-025 Series 7 Professional Digital Force Gauge, 0.25 x 0.00005 lbF

M7-025

Mark-10 ESM303 Offers

Ruggedly built for many years of service in laboratory and industrial environments, this test stand offers generous travel, clearance, and depth dimensions for tests, including break/cycling/limit testing to a load or distance, load-holding, elongation/tensile/compression testing, and more.

Features

Selectable speed setting
Upper and lower travel limit switches
Adjustable, removal controller with intuitive menu navigation
Password protection of test parameters
Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
USB output of force vs. time or force vs. travel
Compact footprint, suitable for crowded workbenches
Ergonomic design, with smart, clean cable management
Integrated electronics assembly, easily removed and transported
Adjustable mounting plate with T-slot base

Applications

Tension and compression measurement
Laboratory
Production

Mark-10 ESM303 Specifications

Load Capacity	<24"/min (<610 mm/min): 300 lbF (1.5 kN) >24"/min (>610 mm/min): 200 lbF (1 kN)
Speed	Range: 0.5 to 13"/min (13 to 330 mm/min) Setting accuracy: ±0.2% of setting Variation with load: ±0% (stepper motor driven)
Maximum Travel Distance	18" (457 mm)
Travel	Accuracy: ±0.002" per 10" (±0.05 mm per 250 mm) Resolution: 0.001"/0.02 mm Display position retention: Most recent position is recalled upon powering on
Limit Switch Repeatability	±0.001" (±0.03 mm)
Power	Universal input 80 to 240 V AC, 50/60 Hz, 60 W
Dimensions	7.6 x 13.95 x 28.88" (193 x 354.3 x 733.5 mm)
Weight	56.5 lbs (25.6 kg)

Click here for complete specifications on the Mark-10 ESM303

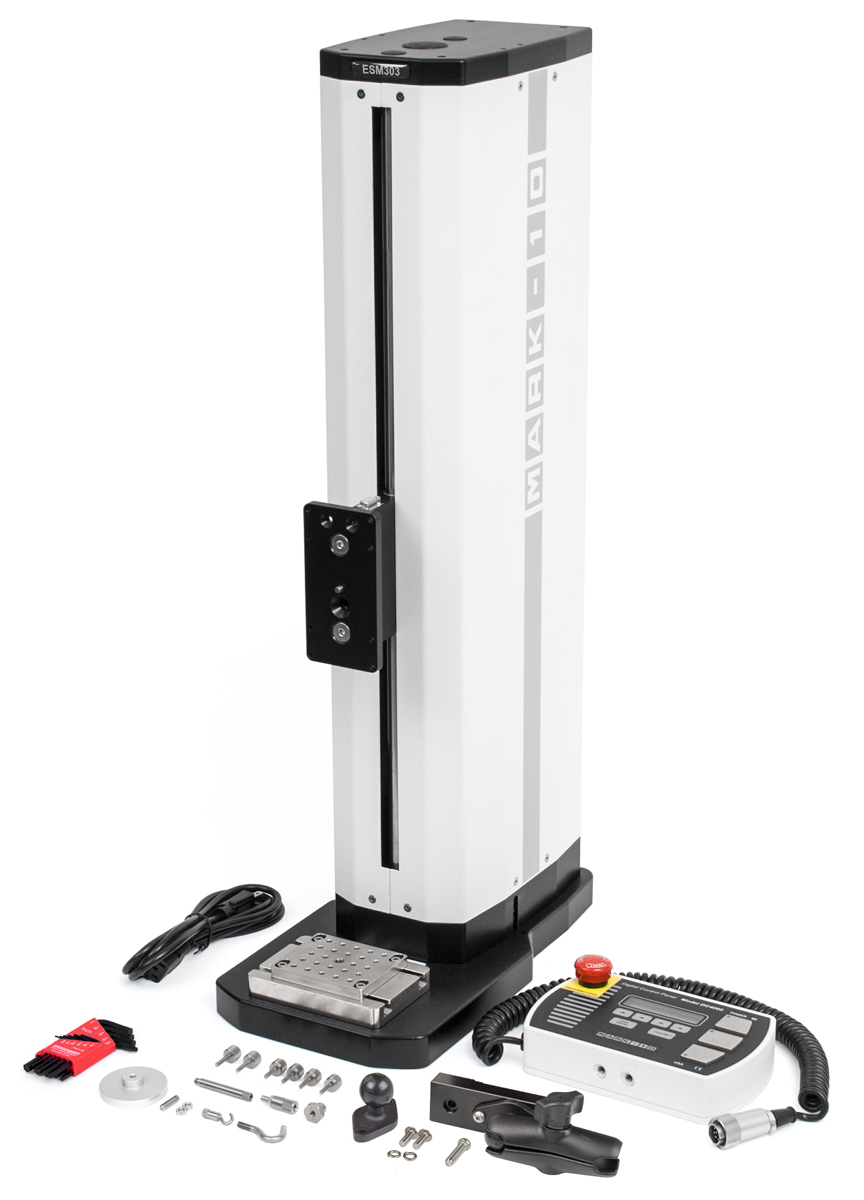

What's included with the Mark-10 ESM303

Test Stand
Control Panel
Control Panel Mounting Bracket and Hardware
Extension Rod
2 x Hooks (Small and Medium)
Coupling
Compression Plate
Thread Adapter
4 x Thumb Screws for Force Gauge/Indicator
2 x Thumb Screws for Limit Switch
Allen Wrench Set
Power Cord
Three-Year Warranty
