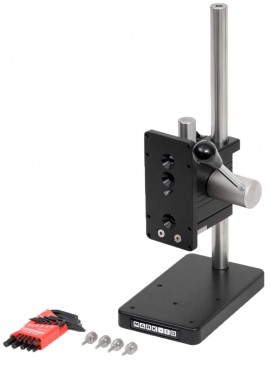

Ideal for compression testing of up to 30 lbF (150 N), this manual force test stand features a small footprint and compact size, making it well suited to crowded workbenches, field auditing, or quick transportation to other testing areas. In addition, a spring-loaded lever allows for repeatable testing with a displacement up to 1.5" (38 mm).
Ideal for compression testing of up to 30 lbF (150 N), this manual force test stand features a small footprint and compact size, making it well suited to crowded workbenches, field auditing, or quick transportation to other testing areas. In addition, a spring-loaded lever allows for repeatable testing with a displacement up to 1.5" (38 mm).
Compact and portable, this test stand fits the bill for many applications, including switch contact activation/small spring testing, peel testing, and more! Additionally, the lever mechanism can be repositioned along the length of the column, allowing the use with various sized samples.
Features
Applications
| Load Capacity | 30 lbF (150 N) |
| Loading Method | Spring-loaded lever |
| Maximum Travel | 1.5" (38 mm) |
| Dimensions | 3.9 x 6.38 x 12.5" (99.1 x 162.1 x 317.5 mm) |
| Weight | 6 lbs (2.7 kg) |
| Load Capacity | 30 lbF (150 N) |
| Loading Method | Spring-loaded lever |
| Maximum Travel | 1.5" (38 mm) |
| Dimensions | 3.9 x 6.38 x 12.5" (99.1 x 162.1 x 317.5 mm) |
| Weight | 6 lbs (2.7 kg) |
