Madgetech Temp1000IS I.S. Temperature Data Logger with Flush Bottom

Model: Temp1000IS

Madgetech Temp1000IS I.S. Temperature Data Logger with Flush Bottom

Model: Temp1000IS

Rugged, submersible temperature data logger is FM approved as intrinsically safe for hazardous environments and is ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications. Capable of storing up to 32,767 time and date stamped temperature readings.

Rugged, submersible temperature data logger is FM approved as intrinsically safe for hazardous environments and is ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications. Capable of storing up to 32,767 time and date stamped temperature readings.

Your Price $239.00 USD
Availability 3 to 4 Weeks
Quantity

Add In-House Traceable Calibration to your Temp1000IS

Choose between the following required accessories:

Interfaces

Clear selected options

Add In-House Traceable Calibration to your Temp1000IS

Choose between the following required accessories:

Interfaces

Clear selected options


Intrinsically Safe Temperature Recorder with Temperature Range from -40 to 80°C

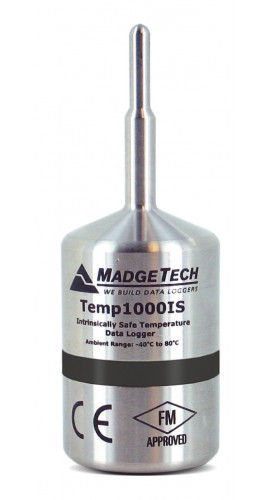

The MadgeTech Temp1000IS Temperature Data Logger is a rugged, submersible (NEMA 6P), battery powered, stand alone, Intrinsically Safe (IS) device which can be used to automatically record temperatures between -40 and 80°C. This all in one compact, portable, easy to use device is able to measure and record up to 32,767 temperature measurements. The Temp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2 groups A, B, C and D hazardous environments. This certification makes the device ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications. Its real time clock ensures that all the data is time and date stamped.


Features:

  • Intrinsically safe
  • Rugged
  • Reusable
  • Programmable start time
  • Real-time operation
  • N.I.S.T. traceable
  • User-friendly
  • Low cost
  • NEMA 4X, 6P
  • CE compliant

Applications:

  • EtO sterilization
  • Implement HACCP Programs
  • Food preparation and processing
  • Environmental studies
  • Well monitoring
  • Dishwasher testing
  • Hazardous and hostile environment monitoring
  • Medical and Pharmaceutical

Specifications:

Sensor
Internal semiconductor
Temperature Range
-40~+80°C
Temperature Resolution
0.1°C
Calibrated Accuracy
±0.5°C
Memory
32,767
Sampling Rate
2 seconds up to 12 hours
Baud Rate
2,400
Typical Battery Life
1 year
Operating Environment
-40~+80°C, 0~100%RH
Submersible
Yes
Material
Available in anodized aluminum or 303 stainless steel
Dimensions
4.3" x 1.0" dia.(110mm x 26mm dia.)
Approvals
CE, IS rated
Weight
4oz.
Click here for complete specifications on the Madgetech Temp1000IS

What's included with the Madgetech Temp1000IS

  • Madgetech Temp1000IS I.S. Temperature Data Logger with Flush Bottom
  • Click on a category to view a selection of compatible accessories with the Madgetech Temp1000IS I.S. Temperature Data Logger with Flush Bottom.

    Madgetech SVP-Secure Secure Validation Software SVP-Secure System
    IQ/OQ/PQ Secure Software Validation Workbook and Software Package.




    Madgetech TL-2150 Lithium Battery, 3.6V TL-2150
    1/2 AA, axial leads, -40 to 80°C.




    Madgetech IFC400 Interface Cable Package IFC400
    Interface Cable Package for HiTemp140 and PR140 Data Loggers. Includes MadgeTech software CD, software manual, Quick Start Guide, USB cable and USB docking station.




    Madgetech IFC406 Multiplexer Data Logger Interface IFC406
    Multiplexer data logger interface allows for six data loggers to be connected and communicate through one USB port.
