Intrinsically safe data logger accurately monitors and records pressure and temperature at user programmable reading intervals in the range of 0 to 300 psig. Store up to 16,383 readings in its non-volatile memory.
Please note: The Madgetech IFC200 USB Interface Cable Package is a required accessory for use with this product.
Intrinsically safe data logger accurately monitors and records pressure and temperature at user programmable reading intervals in the range of 0 to 300 psig. Store up to 16,383 readings in its non-volatile memory.
Please note: The Madgetech IFC200 USB Interface Cable Package is a required accessory for use with this product.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

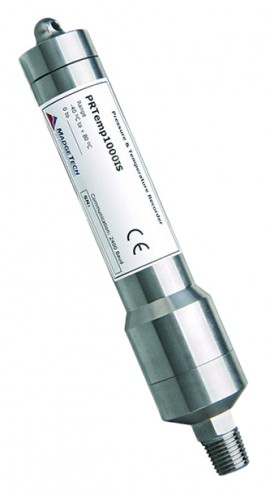

The PRTemp1000IS is a rugged pressure and temperature data logger. It measure and records temperature and pressure data at user defined intervals. It has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2, groups A, B, C and D. This certification makes the device ideal for uses in hostile environment applications such as air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.
The internal temperature sensor provides accurate temperature measurements without the need of a separate temperature data logger. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory. It uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a common 1/4" NPT fitting, which allows the logger to be adapted to almost any pressure fitting.
Features
Applications
| Temperature | |
| Sensor | Semiconductor |
| Range | -40 to 176°F (-40 to 80°C) |
| Resolution | 0.18°F (0.1°C) |
| Calibrated Accuracy | ±0.9°F (±0.5°C) |
| Pressure | |
| Sensor | Semiconductor strain gauge |
| Range | 0 to 300 psig |
| Resolution | 0.002, 0.005, 0.02, 0.05 psia/g; 0.05, 0.2 psia |
| Calibrated Accuracy | 2% FSR, 0.25% at 25°C typical |
| General Specifications | |
| Repeatability | ±0.5% FSR; ±0.2% typical |
| Adaptor | 1/4" male NPT |
| Memory | 16,383 readings per channel; 32,766 total readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Battery | Type: 3.6 V lithium battery included; user replaceable Life: 1 year typical (1 minute reading rate @ 25°C) |
| Data Format | Date and time stamped °C, °F, K, °R ; psia(g), inches, feet, mmHg, bar, Torr, kPa |
| Time Accuracy | ±1 minute/month (at 20°C, RS232 port not in use) |
| Operating Environment | -40 to 176°F (-40 to 80°C), 0 to 100% RH |
| Approvals | CE FM Certified Intrinsically Safe for Class I, Division 1 groups A, B, C and D |
| Dimensions | 6.4 x 1.25" diameter (163 x 32 mm diameter) |
| Weight | 12 oz (340 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech PRTemp1000IS-300-PSIG I.S. Safe Pressure/Temperature Data Logger, 300 psig.
| Temperature | |
| Sensor | Semiconductor |
| Range | -40 to 176°F (-40 to 80°C) |
| Resolution | 0.18°F (0.1°C) |
| Calibrated Accuracy | ±0.9°F (±0.5°C) |
| Pressure | |
| Sensor | Semiconductor strain gauge |
| Range | 0 to 300 psig |
| Resolution | 0.002, 0.005, 0.02, 0.05 psia/g; 0.05, 0.2 psia |
| Calibrated Accuracy | 2% FSR, 0.25% at 25°C typical |
| General Specifications | |
| Repeatability | ±0.5% FSR; ±0.2% typical |
| Adaptor | 1/4" male NPT |
| Memory | 16,383 readings per channel; 32,766 total readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Battery | Type: 3.6 V lithium battery included; user replaceable Life: 1 year typical (1 minute reading rate @ 25°C) |
| Data Format | Date and time stamped °C, °F, K, °R ; psia(g), inches, feet, mmHg, bar, Torr, kPa |
| Time Accuracy | ±1 minute/month (at 20°C, RS232 port not in use) |
| Operating Environment | -40 to 176°F (-40 to 80°C), 0 to 100% RH |
| Approvals | CE FM Certified Intrinsically Safe for Class I, Division 1 groups A, B, C and D |
| Dimensions | 6.4 x 1.25" diameter (163 x 32 mm diameter) |
| Weight | 12 oz (340 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech PRTemp1000IS-300-PSIG I.S. Safe Pressure/Temperature Data Logger, 300 psig.
