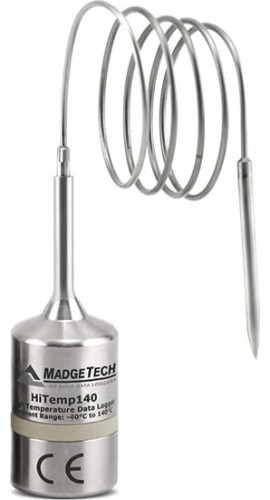

Operate up to 284°F (140°C) with this high-temperature data logger that features a 12" (304.8 mm) flexible probe and 1" (25.4 mm) piercing tip. In addition, this data logger records date and time-stamped readings and has non-volatile solid-state memory to retain data even if the battery becomes discharged.
Operate up to 284°F (140°C) with this high-temperature data logger that features a 12" (304.8 mm) flexible probe and 1" (25.4 mm) piercing tip. In addition, this data logger records date and time-stamped readings and has non-volatile solid-state memory to retain data even if the battery becomes discharged.
The extended range temperature data logger has a battery life indicator.
Features
Applications
| Specifications | |
| Temperature Sensor | 100 Ω Platinum RTD |
| Probe Measurement Range | -328 to 662°F (-200 to 350°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Calibrated Accuracy | ±0.18°F (±0.1°C) (68 to 284°F (20 to 140°C)) ±0.54°F (±0.3°C) (-4 to 67.98°F (-20 to 19.99°C)) ±0.72°F (±0.4°C) (-40 to -4.02°F (-40 to -20.01°C)) |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Battery Type | 3.6 V high-temperature lithium battery included, user replaceable |
| Battery Life | 1 year typical (1 minute reading rate at 77°F (25°C)) |
| Data Format | Date and time stamped°C, K,°F or°R |
| Time Accuracy | ±1 minute/month at 68 to 86°F (20 to 30°C)(Stand alone mode) |
| Computer Interface | IFC400 OR IFC406 USB docking station required: 125,000 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Operating Environment | -40 to 284°F (-40 to 140°C) 0% RH to 100% RH 0.002 PSIA to 100 PSIA |
| Material | 316 Stainless Steel |
| Approvals | CE |
| Dimensions (Body) | 1.9 x 0.97" (48 x 24.6 mm) |
| Dimensions (PT-1 Probe) | Probe Tip: 1.7 x 0.125" (42 x 3.2 mm) Bendable Portion: 12 x 0.062" (305 x 1.6 mm) |
| Weight | 4.2 oz (120 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-PT High Temperature Data Logger with a 12" flexible probe and 1" piercing tip.
| Specifications | |
| Temperature Sensor | 100 Ω Platinum RTD |
| Probe Measurement Range | -328 to 662°F (-200 to 350°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Calibrated Accuracy | ±0.18°F (±0.1°C) (68 to 284°F (20 to 140°C)) ±0.54°F (±0.3°C) (-4 to 67.98°F (-20 to 19.99°C)) ±0.72°F (±0.4°C) (-40 to -4.02°F (-40 to -20.01°C)) |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Battery Type | 3.6 V high-temperature lithium battery included, user replaceable |
| Battery Life | 1 year typical (1 minute reading rate at 77°F (25°C)) |
| Data Format | Date and time stamped°C, K,°F or°R |
| Time Accuracy | ±1 minute/month at 68 to 86°F (20 to 30°C)(Stand alone mode) |
| Computer Interface | IFC400 OR IFC406 USB docking station required: 125,000 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Operating Environment | -40 to 284°F (-40 to 140°C) 0% RH to 100% RH 0.002 PSIA to 100 PSIA |
| Material | 316 Stainless Steel |
| Approvals | CE |
| Dimensions (Body) | 1.9 x 0.97" (48 x 24.6 mm) |
| Dimensions (PT-1 Probe) | Probe Tip: 1.7 x 0.125" (42 x 3.2 mm) Bendable Portion: 12 x 0.062" (305 x 1.6 mm) |
| Weight | 4.2 oz (120 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-PT High Temperature Data Logger with a 12" flexible probe and 1" piercing tip.
