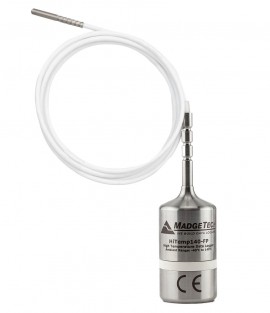

The HiTemp140-FP is built for use in harsh environments, being able to withstand temperatures from -40 to 284°F (-40 to 140 °C). It has a 72" (182.88 cm) flexible probe without stainless steel tip.
The HiTemp140-FP is built for use in harsh environments, being able to withstand temperatures from -40 to 284°F (-40 to 140 °C). It has a 72" (182.88 cm) flexible probe without stainless steel tip.
The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes. Commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in several models. The flexible probe is coated with PFA insulation and can withstand temperatures up to 500°F (260°C). The body of the logger cannot exceed 284°F (140°C). The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, tubing, test tube and other small diameter or delicate applications.
Using the latest MadgeTech Software, starting, stopping and downloading the HiTemp140-FP is simple and easy. To use, simply place the HiTemp140-FP in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading interval. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.
Features
Applications
| Temperature | |
| Temperature Sensor | Flexible RTD Probe |
| Probe Measurement Range | -328 to 500°F (-200 to 260°C) Body of logger cannot exceed 284°F (140°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Calibrated Accuracy | ±0.18°F from 68 to 284°F (±0.1°C from 20 to 140°C) ±0.54°F from -4 to 67.98°F (±0.3°C from -20 to 19.99°C) ±0.72°F from -40 to -4.02°F (±0.4°C from -40 to -20.01°C) |
| General Specifications | |
| Start Modes | Software programmable immediate start; delay up to 18 months in advance |
| Stop Modes | Manual or Timed (specific date and time) |
| Data Logger Response Time | In Air t60 - 00:00:30:00 t90 - 00:01:10:00 In Water t60 - 00:00:03:50 t90 - 00:00:06:50 |
| Trigger Settings | High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers |
| Memory | 32,512 readings |
| Readings in Trigger Settings Mode | 6,502 readings |
| Real Time Recording | May be used with PC to monitor and record real-time data |
| Password Protection | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password |
| Wrap Around | Yes |
| Reading Rate | 4/second to 1/24 hour |
| Calibration | Digital calibration via software |
| Calibration Date | Automatically recorded |
| Battery | Type: 3.6V lithium, user-replaceable Life: 1 year typical (1 minute rate at 77°F (25 °C) |
| Data Format | Date and time stamped °C, K, °F, or °R |
| Time Accuracy | ±1 minute/month at 77°F (25 °C) Extended Operation: ±20 minutes/month at 284°F (140 °C) |
| Computer Interface | IFC400 or IFC406 USB docking station required 125,000 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Software Compatibility | MadgeTech Standard Software v4.2.1.1 or later MadgeTech Secure Software v4.2.0.1 or later |
| Operating Environment | -40 to 284°F (-40 to 140°C) 0 to 100% RH, 0.002 to 100 PSIA |
| IP Rating | IP68 |
| Material | Body: 316 Stainless Steel, Radel Probe: PFA Insulated Cable |
| Approvals | CE |
| Dimensions | Body: 2.95 x 0.97 x 0.97" (75 x 24.6 x 24.6 mm) Probe: 72 x 0.13" (1829 x 3.2 mm) |
| Weight | 3 oz (85 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-FP-72 High Temperature Data Logger with 72" flexible RTD probe, without stainless steel tip, 284°F.
